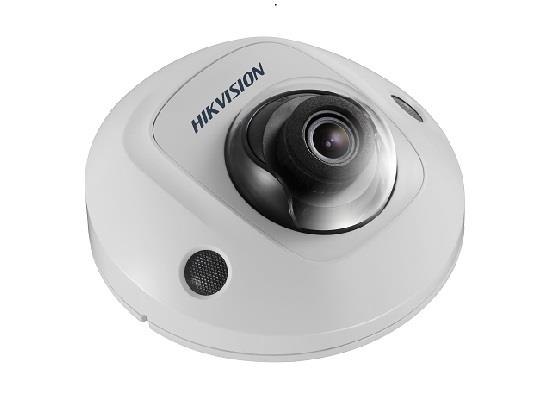

DS-2CD2525FHWD-I(W)(S)2MP EXIR Fixed Mini Dome Network Camera

Hikvision
Add to wishlist
Compare

• 1920 ×

• IR: up to 10 m

• H.265, H.265+

•120dB WDR

• Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

• PoE

• EXIR

• Wi-Fi (Optional)

Compare
Camera
Image Sensor: | 1/2.8″ Progressive Scan CMOS
Signal System: | PAL/NTSC
Min. Illumination: | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR; Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR
Shutter time: | 1/3 s to 1/100,000 s
Slow shutter: | Support
Lens: | 2.8 mm: Horizontal field of view: 108°, Vertical field of view: 59°, Diagonal field of view: 129°
4 mm: Horizontal field of view: 87°, Vertical field of view: 45°, Diagonal field of view: 102°
6 mm: Horizontal field of view: 53°, Vertical field of view: 29°, Diagonal field of view: 60°
Lens Mount: | M12
Adjustment Range: | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
Compression Standard
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: | 32Kbps~16Mbps
Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams: | Yes
Max. Image Resolution: | 1920 x 1080
Frame Rate: | 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: | BLC/3D DNR
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI: | Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch: | Auto/Scheduled
Network
Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: | ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: | Cross a pre-defined virtual line
Intrusion Detection: | Enter and loiter in a pre-defined virtual region
Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display.
Recognition: | Face Detection
Wi-Fi Specification (-W)
Wireless Standards: | IEEE802.11b, 802.11g, 802.11n
Frequency Range: | 2.412 GHz to 2.4835 GHz
Channel Bandwidth: | 20/40MHz Support
Transmission Rate: | 11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Wireless Range: | 50m(depend on environment)
Protocols: | 802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: | 12 VDC, 0.625A, max. 7.5W
PoE (802.3af, 36V to 57V), 0.26 A to 0.17 A, max. 9.5W
Impact Protection: | IK08 Protection Level
Weather Proof: | IP66
IR Range: | Up to 10m
Dimensions: | Φ110 mm × 56.4 mm (Φ4.33″ × 2.22″)
Weight: | Camera: Approx. 400 g (0.88 lb.)
