- ProcessorHigh performance embedded microprocessor
- Operating SystemEmbedded LINUX
- User InterfaceGUI
- Video Input8 channel, BNC
- Video Output1 HDMI, 1 VGA
- Video StandardAnalog: 8Ch. @1080P, 8Ch. @1080N / Hybird: 4Ch. @1080P(analog) + 4Ch. @1080P(ip) / IP: 4Ch. @5M, 4Ch. @3M, 8Ch. @1080P + 8Ch. @960P, 16Ch. @960P
- CompressionH.264 / G.711a
- Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
- Audio Input4 channel, RCA
- Audio Output1 channel, RCA
- Hard Disk1 SATA port, up to 8TB
- Smart PhoneiPhone, iPad, Android
- HDD ManagementHDD Storage, Network Storage
- Recording ModeManual>Alarm>Motion detection>Timing
- Search Modesearch by Time/Calendar/Event/Channel
- Playback4Ch. @1080P (12fps) , 8Ch. @1080N (25fps)
- Backup ModeNetwork, USB, SATA
- Interface Ports2 USB 2.0, 1 RS485, 1 RJ45
- EthernetRJ45 10M/100M Adaptive Ethernet port
- ProtocolsHTTP, TCP/IP, UDP, IPV4, UPNP, RTSP, SMTP, NTP, DHCP, DNS, FTP, P2P, ONVIF, CGI
- Power Supply12V/2A
- Power Consumption<10W(Without HDD)
- Working Temp0 °C – + 55 °C, 10% -90% RH
- Dimension255mm(L) x 236mm(W) x 44mm(H)
- Weight1 KG

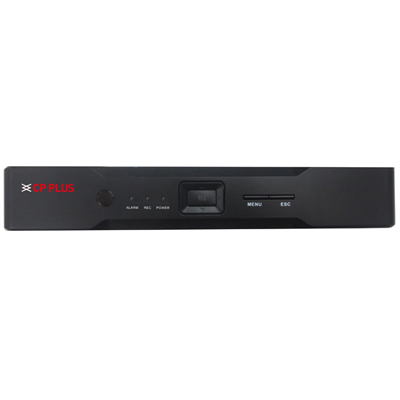

8 Ch., Digital Video Recorder (DVR)
CP-ER-0804K1-T 8 Ch. 1080P Astra DVR
- H.264 dual-stream video compression
- All channel 1080P Non-Realtime Recording
- Support AHD, TVI,CVI, CVBS, IP Video input
- HDMI / VGA simultaneous video output
- Support 1 SATA HDD up to 8TB, 2 USB2.0
- Mobile Software: RMOB
- CMS Software: RVMS
