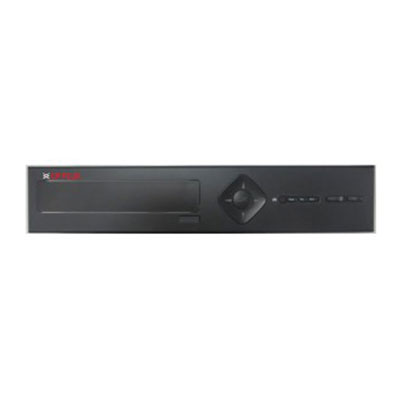

CP-ER-0808D2-5M 8 Ch. 5MP Astra DVR

CP Plus

  • H.264+ /H.264 dual-stream video compression
  • All channel 5MP Non-Realtime Recording
  • Support AHD, TVI,CVI, CVBS, IP Video input
  • HDMI / VGA simultaneous video output
  • Support 2 SATA Port up to 16TB, 2 USB Ports(2.0)
  • Mobile Software: cMOB-20
  • CMS Software: RVMS Pro

  • ProcessorHigh performance embedded microprocessor
  • Operating SystemEmbedded LINUX
  • User InterfaceGUI
  • Video Input8 channel, BNC
  • Video Output1 HDMI, 1 VGA
  • Video StandardAnalog: 8Ch. 5MP@11fps(AHD) , 8Ch. 4MP@15fps(AHD) , 8Ch. 3MP@18fps(AHD) , 8Ch. @1080P(5 in 1) / Hybrid: 4Ch. @5MP(analog) + 4Ch. @5MP (ip) / IP: 8Ch. @3MP , 4Ch. @5MP
  • CompressionH.264+/ H.264 / G.711a
  • Video Resolution5MP, 4MP, 3MP, 2MP, 1MP
  • Video Recording8Ch. 5MP@11fps(AHD) , 8Ch. 4MP@15fps(AHD) , 8Ch. 3MP@18fps(AHD) , 8Ch. @1080P(5 in 1)
  • Video Display Split1/4/8/9
  • Audio Input8 channel
  • Audio Output1 channel
  • Alarm Input4 channel
  • Alarm Output1 channel
  • Hard Disk2 SATA port, up to 16TB
  • Smart PhoneiPhone, iPad, Android
  • HDD ManagementHDD Storage, Network Storage
  • Recording ModeManual>Alarm>Motion detection>Timing
  • Search ModeSearch by Time/Calendar/Event/Channel
  • Playback8Ch.
  • Backup ModeNetwork, USB, SATA
  • Interface Ports2 USB Ports(2.0), 1 RS485, 1 RJ45
  • Wi-FiSupport 3G
  • EthernetRJ45 10/100Mbps Adaptive Ethernet port
  • ProtocolsHTTP, TCP/IP, UDP, IPV4, UPNP, RTSP, SMTP, NTP, DHCP, DNS, FTP, P2P, ONVIF, CGI
  • Power Supply12V/4A
  • Power Consumption<10W (Without HDD)
  • Working Temp0 °C – + 55 °C, 10% -90% RH
  • Dimension310mm(L) x 298mm(W) x 60mm(H)
  • Weight1.8 KG
