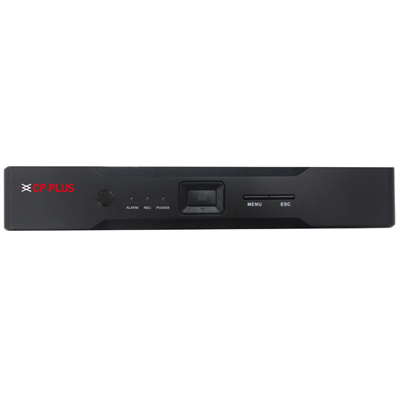

CP-ER-1602K1-T 16 Ch. 1080P Astra DVR

CP Plus

  • H.264 dual-stream video compression
  • All channel 1080P Non-Realtime Recording
  • Support AHD, TVI,CVI, CVBS, IP Video input
  • HDMI / VGA simultaneous video output
  • Support 1 SATA HDD up to 8TB, 2 USB2.0
  • Mobile Software: RMOB
  • CMS Software: RVMS

  • ProcessorHigh performance embedded microprocessor
  • Operating SystemEmbedded LINUX
  • User InterfaceGUI
  • Video Input16 channel, BNC
  • Video Output1 HDMI, 1 VGA
  • Video StandardAnalog: 16Ch. @1080P, 8Ch. @1080P, 16Ch. @1080N / Hybird: 8Ch. @1080P(analog) + 8Ch. @1080P(ip) / IP: 4Ch. @5M, 8Ch. @3M, 8Ch. @1080P + 8Ch. @960P
  • CompressionH.264 / G.711a
  • Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
  • Audio Input2 channel, RCA
  • Audio Output1 channel, RCA
  • Hard Disk1 SATA port, up to 8TB
  • Smart PhoneiPhone, iPad, Android
  • HDD ManagementHDD Storage, Network Storage
  • Recording ModeManual>Alarm>Motion detection>Timing
  • Search Modesearch by Time/Calendar/Event/Channel
  • Playback16Ch. @1080P (12fps) , 8Ch. @1080P , 16Ch. @1080N
  • Backup ModeNetwork, USB, SATA
  • Interface Ports2 USB 2.0, 1 RS485, 1 RJ45
  • EthernetRJ45 10M/100M Adaptive Ethernet port
  • ProtocolsHTTP, TCP/IP, UDP, IPV4, UPNP, RTSP, SMTP, NTP, DHCP, DNS, FTP, P2P, ONVIF, CGI
  • Power Supply12V/2A
  • Power Consumption<10W(Without HDD)
  • Working Temp0 °C – + 55 °C, 10% -90% RH
  • Dimension255mm(L) x 236mm(W) x 44mm(H)
  • Weight1 KG
