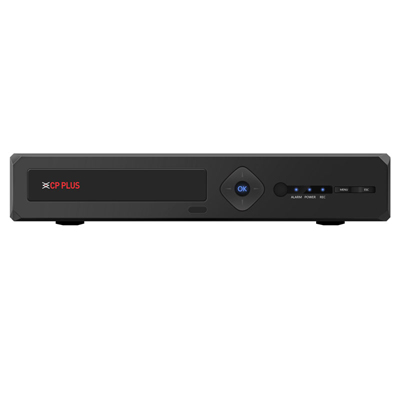

CP-ER-H0404K2 4 Ch. 2MP HDX DVR
- H.264 dual-stream video compression
- All channel AHD-H Realtime Encoding
- 4Ch. 1080N / 4Ch. AHD-H@15fps
- HDMI / VGA simultaneous video output
- Support 2 SATA HDD up to 12TB, 2 USB2.0
- Mobile Software: RMOB
- CMS Software: RVMS
- ProcessorHigh performance embedded microprocessor
- Operating SystemEmbedded LINUX
- User InterfaceGUI
- Video Input4 channel, BNC
- Video Output1 HDMI, 1 VGA
- Audio Input4 channel, RCA
- Audio Output1 channel, RCA
- Hard Disk2 SATA port, up to 12TB
- Smart PhoneiPhone, iPad, Android, Windows Phone
- Recording ModeManual>alarm>motion detection>timing
- PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
- Backup ModeNetwork backup, USB HDD, USB writer, SATA writer
- Interface Ports2 USB 2.0, 1 RS485, 1 RJ45
- EthernetRJ45 10M/100M Adaptive Ethernet port
- Power SupplyDC12V/4A
- Power Consumption=48 W
- Working Temp-15ºC–60ºC
- Dimension310mm x 298mm x 60mm
- Weight3 Kg.
