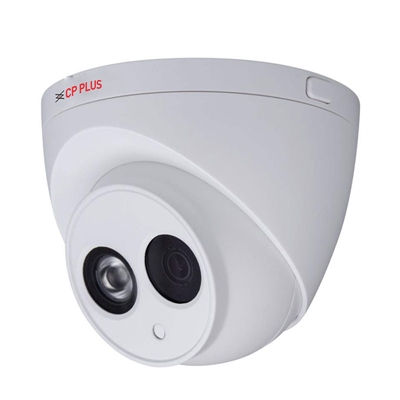

CP-UNC-DA10R3 1 MP HD Array Dome Camera – 30Mtr.

CP Plus

  • 1MP PS CMOS Image Sensor
  • Max 25/30fps@720P
  • H.264 and MJPEG dual-stream encoding
  • DWDR, Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
  • 3.6mm fixed lens (6mm optional)
  • Array Range of 30 Mtrs, IP67
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

  • Image Sensor1MP Progressive scan CMOS
  • Minimum Illumination0. 1Lux/F2.1(Color), 0Lux/F2.1(IR on)
  • Shutter SpeedAuto/Manual, 1/3(4)~1/10000s
  • White BalanceAuto/Manual
  • Lens3.6mm fixed lens (6mm optional)
  • AGC ControlAuto/Manual
  • Video CompressionH.264 / MJPEG
  • S/N RatioMore than 50dB
  • Back Light Comp.BLC/ HLC/ DWDR
  • Video StreamingMain Stream: 720P(1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps)
  • Resolution720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240)
  • ICRAuto(ICR)/Color/B/W
  • ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI
  • User Account20 Users
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • IRIR Range of 30 Mtr.
  • Operating Temperature-30°C~+60°C , Less than 95%RH
  • Power SourceDC12V
  • Power ConsumptionMax 4W
  • Weatherproof StandardIP67
  • Dimensionφ110mm × 95mm
  • Weight300g
