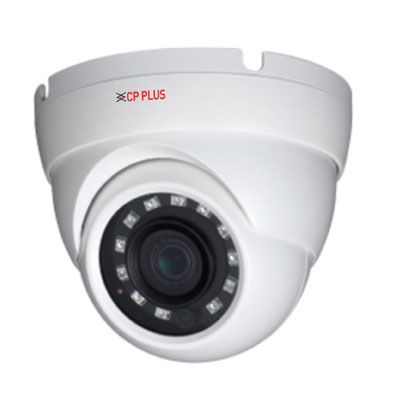

CP-UNC-DD41L3-D 4 MP Full HD WDR IR Dome Camera – 30Mtr.

CP Plus

  • 1/3″ 4MP PS CMOS Image Sensor
  • 25/30fps@4M (2688×1520)
  • H.265 and H.264 triple-stream encoding
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • IR Range of 30 Mtrs, IP67, PoE
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

  • Image Sensor1/3″ 4MP Progressive scan CMOS
  • Minimum Illumination0.08Lux/F2.0 (Color), 0Lux/F2.0 (IR on)
  • Effective Pixels2688(H) x 1520(V)
  • White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
  • Lens3.6mm(2.8mm, 6mm optional)
  • AGC ControlAuto/Manual
  • Video CompressionH.265+/H.265/H.264+/H.264
  • S/N RatioMore than 50dB
  • Back Light Comp.BLC / HLC / WDR(120dB)
  • Video StreamingMain Stream: 4M(1~25/30fps) , Sub Stream: D1(1~25/30fps) ,Third Stream: 720P(1~25/30fps)
  • Resolution4M(2688×1520)/3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
  • Digital Zoom16x
  • Motion DetectionOff / On (4 Zone, Rectangle)
  • ICRAuto(ICR)/Color/B/W
  • ROIOff / On (4 Zone)
  • Bit RateH.264: 24~10240Kbps, H.265: 14~9984Kbps
  • ProtocolHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP, ONVIF, PSIA, CGI
  • Smart DetectionTripwire, Intrusion, Object Abandoned/Missing, Face detect
  • User Account10/ 20 Users
  • Smart PhoneiPhone, iPad, Android Phone
  • IRIR Range of 30 Mtr.
  • No. of IR LEDs12
  • Operating Temperature-30°C~+60°C, Less than 95% RH
  • Power SourceDC12V, PoE (802.3af)
  • Power Consumption<6W
  • Weatherproof StandardIP67
  • DimensionΦ93.4mm×79.4mm
  • Weight0.3Kg
