- Image Sensor1/4″ 1MP Progressive scan CMOS
- Minimum Illumination0. 1Lux/F2.1(Color), 0Lux/F2.1(IR on)
- Effective Pixels1280(H) x 720(V)
- Shutter SpeedAuto/Manual, 1/3(4)~1/100000s
- White BalanceAuto/Manual
- Lens3.6mm fixed lens (6mm optional)
- AGC ControlAuto/Manual
- Video CompressionH.264 / MJPEG
- S/N RatioMore than 50dB
- Back Light Comp.BLC/ HLC/ DWDR
- Resolution720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240)
- Frame RateMain Stream :720P(1 ~ 25/30fps), Sub Stream :D1/CIF(1 ~ 25/30fps)
- ICRAuto(ICR)/Color/B/W
- ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, ONVIF, PSIA, CGI
- User Account20 Users
- Smart PhoneiPhone, iPad, Android Phone
- IRIR Range of 40 Mtr.
- Operating Temperature-30°C~+60°C , Less than 95%RH
- Power SourceDC12V
- Power ConsumptionMax 4W
- Weatherproof StandardIP67
- Dimension191mm × 90mm × 82mm
- Weight0.45Kg
1 MP, Network Camera

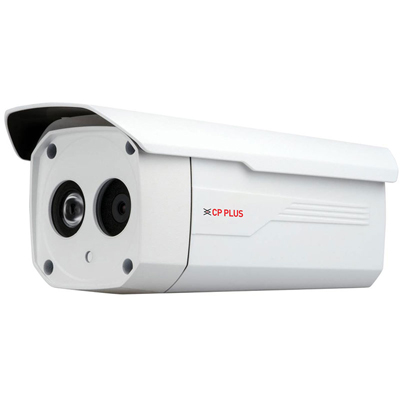

CP-UNC-TA10L4S 1 MP HD Network Bullet Camera – 40Mtr.
- 1/4″ 1MP PS CMOS Image Sensor
- 25/30fps@720P(1280×720)
- H.264 and MJPEG dual-stream encoding
- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
- 3.6mm fixed lens (6mm optional)
- IR Range of 40 Mtrs, IP67
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro, vOptimus Pro
