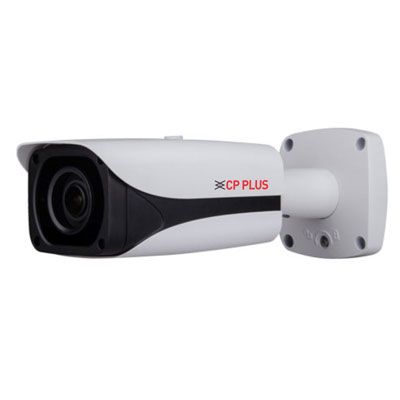

CP-UNC-TH4KZR5-VM 4K Network Array Bullet Camera – 50Mtr.

CP Plus

  • 1/1.7″ 12 MP PS CMOS Image Sensor
  • Max 20fps@12Mp, 25/30fps@4K
  • H.265, H.264 and MJPEG dual-stream encoding
  • DWDR, Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
  • 4.1 -16.4mm Motorized Lens
  • IR Range of 50 Mtrs, IP67, IK10, PoE Plus
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

  • Image Sensor1/1.7″ 12MP CMOS
  • Minimum Illumination0.01Lux/F1.53(Color,1/3s,30IRE) 0.1Lux/F1.53(Color,1/30s,30IRE) 0Lux/F1.53(IR on)
  • Effective Pixels4000(H) x 3000(V)
  • Shutter SpeedAuto/Manual, 1/1~1/100000s
  • White BalanceAuto/Sunny/Night/Outdoor/Customized
  • Lens4.1 – 16.4mm Motorized Lens Auto Iris
  • AGC ControlAuto/Manual
  • Video CompressionH.265 / H.264 / MJPEG
  • S/N RatioMore than 50dB
  • Back Light Comp.BLC/ HLC/ DWDR/ SSA
  • Video StreamingMain Stream: 12M(1~20fps)/ 4K(1~25/30fps) , Sub Stream: D1 (1 ~ 25/30fps) , Third Stream: 1080P(1~25/30fps)
  • Resolution12M(4000×3000)/ 4K(3840×2160)/ 6M(3072×2048)/ 5M(2560×1920)/ 3M(2048×1536)/ 3M(2304×1296)/ 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480) / VGA(640×480)/CIF(352×288/342×240)
  • Motion DetectionOff / On (4 Zone, Rectangle)
  • ICRAuto(ICR)/Color/B/W
  • ROIOff / On (4 Zone)
  • Audio Input1 Channel
  • Audio Output1 Channel
  • Audio ComprerssionG.711a / G.711u/AAC
  • Alarm IN2 Channel In
  • Alarm Out1 Channel Out
  • ProtocolHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;SSL, IGMP, QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;ICMP;SNMP, ONVIF ( Profile S), PSIA, CGI
  • Smart DetectionTripwire, Intrusion, Object Abandoned/Missing, Face Detection, People Counting, Heat Map
  • User Account20 Users
  • Smart PhoneiPhone, iPad, Android Phone
  • IRArray Range of 50 Mtr.
  • Micro SDMax 128GB
  • Operating Temperature-40°C~+60°C , Less than 95%RH
  • Power SourceDC12V, PoE+(802.3at)
  • Power Consumption<13W
  • Weatherproof StandardIP67 & IK10
  • Dimension273.2mm×95.0mm×96.4mm (10.76”×3.74”×3.79”)
  • Weight1.12Kg
