4 MP, Network Camera

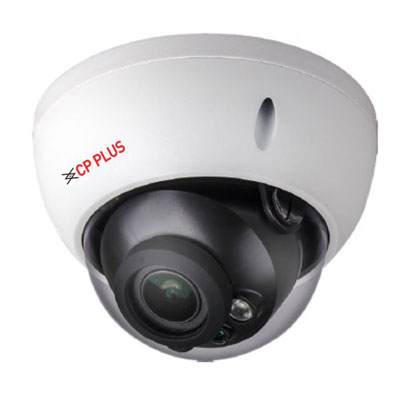

CP-UNC-VB41ZL3-VMD 4MP Full HD WDR IR Vandal Dome Camera – 30Mtr.
- 1/3” 4MP PS CMOS Image Sensor
- Max 20fps@4MP and 25/30fps@3MP
- H.265 and H.264 dual-stream encoding
- WDR(120dB), Day/Night(ICR), 3DNR, ROI, AWB, AGC, BLC, HLC
- 2.7~13.5mm Motorized lens
- IR Range of 30 Mtrs, IP67, IK10, PoE, SD Card
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro, vOptimus Pro
- Image Sensor1/3” 4Megapixel progressive scan CMOS
- Minimum Illumination0.03Lux/F1.4( Color,1/3s,30IRE) 0.3Lux/F1.4( Color,1/30s,30IRE) 0Lux/F1.4(IR on)
- Effective Pixels2688(H) x 1520(V)
- Shutter SpeedAuto/Manual, 1/3(4)~1/100000s
- White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
- Lens2.7mm~13.5mm Motorized Lens
- Gain Control (AGC)Auto/Manual
- Video CompressionH.265+/H.265/H.264+/H.264
- S/N RatioMore than 45dB
- Back Light Comp.BLC / HLC / WDR(120dB)
- Video StreamingMain Stream: 4MP (1~20fps) / 3MP (1~25/30fps), Sub Stream: D1/CIF(1 ~ 25/30fps)
- Resolution(2688×1520)/(2560×1440)/(2304×1296)/1080P(1920×1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)CIF(352×288/352×240)
- Digital Zoom16x
- Motion DetectionOff / On (4 Zone, Rectangle)
- Privacy MaskOff / On (4 Area, Rectangle)
- ICRAuto(ICR)/Color/B/W
- ROIOff / On (4 Zone)
- Audio Input1 channel
- Audio Output1 channel
- Audio ComprerssionN/AG.711A;G.711Mu;G.726;AAC
- Alarm IN1 channel In: 5mA 5VDC
- Alarm Out1 channel Out: 300mA 12VDC
- Bit RateH.265: 12K ~ 8448Kbps , H.264: 32K ~ 10240Kbps
- ProtocolHTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP; ONVIF, PSIA, CGI
- EthernetRJ-45 (10/100Base-T)
- User Account20 Users
- Smart PhoneiPhone, iPad, Android Phone
- IRIR Range of 30 Mtr.
- Micro SDSD Card, Max 128GB
- Operating Temperature-30°C~+60°C , Less than 95%RH
- Power SourceDC12V, PoE (802.3af)
- Power Consumption<8.5W
- Weatherproof StandardIP67 & IK10
- Dimensionφ122mm x 88.9mm
- Weight0.4 Kg
