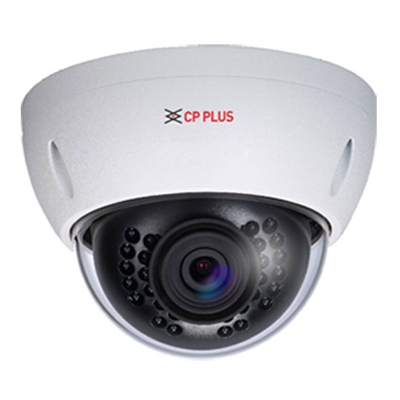

CP-UNC-VD20L3-MD 2MP Full HD WDR IR Vandal Dome Camera – 30Mtr

CP Plus
Add to wishlist
Compare
  • 1/3″ 2MP PS CMOS Image Sensor
  • Max 25/30fps@1080P(1920×1080)
  • WDR(120dB), Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • IR Range of 30Mtrs, IP67, IK10, PoE
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

  • Image Sensor1/3″ 2MP Progressive scan CMOS
  • Minimum Illumination0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
  • Shutter SpeedAuto/Manual, 1/3(4)~1/10000s
  • White BalanceAuto
  • Lens3.6mm (2.8mm, 6mm optional)
  • AGC ControlAuto/Manual
  • Video CompressionH.264/H.264H/H.264B/MJPEG
  • S/N RatioMore than 50dB
  • Back Light Comp.BLC/ HLC/ WDR(120dB)
  • Video StreamingMain Stream: 1080P/720P(1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps), Third Stream: 720P(1-13/4fps)
  • Resolution1080(1920×1080) / 720P(1280×720) / D1(704×576/704×480) /CIF(352×288/352×240)
  • ICRAuto(ICR)/Color/B/W
  • Audio Input1 Channel
  • Audio Output1 Channel
  • Audio ComprerssionG.711a/G.711u/PCM
  • Alarm IN1 Channel
  • Alarm Out1 Channel
  • ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI
  • Smart DetectionTripwire, Intrusion, Scene Change, Missing/Abandoned, Audio detect, Face detect
  • User Account20 Users
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • IRIR Range of 30 Mtr.
  • Micro SDMicro SD Max 128GB
  • Operating Temperature-40°C~+60°C, Less than 95% RH
  • Power SourceDC12V, PoE (802.3af)
  • Power Consumption<4W
  • Weatherproof StandardIP67 & IK10
  • DimensionΦ 110mm × 81mm
  • Weight0.33kg
