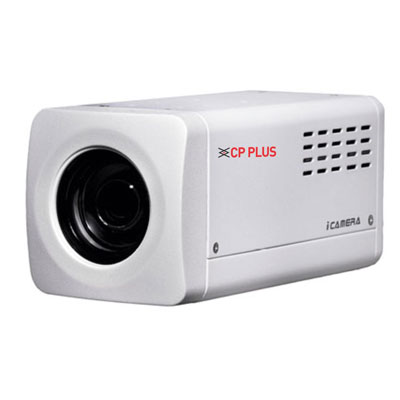

CP-UNP-3021D-P 2MP 30x Network Box Zoom Camera

CP Plus
Add to wishlist
Compare
  • 1/2.8″ 2MP CMOS Image sensor
  • Max. 50/60fps@1080P
  • Powerful 30x Optical and 16x Digital zoom
  • H.265/ H.264/ MJPEG Dual-Stream Encoding
  • WDR(120dB), Day/Night(ICR), 3DDNR, ROI, EIS, AWB, AGC, BLC
  • Built-in 1/1 alarm in/out, PoE , Micro SD Card
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

  • Image Sensor1/2.8″ CMOS
  • Effective Pixels1920(H) x 1080(V), 2 Megapixels
  • S/N RatioMore than 55dB
  • Minimum IlluminationColor: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6
  • Focal Length4.5mm~135mm
  • White BalanceAuto,ATW,Indoor,Outdoor,Manual
  • Focus ControlAuto / Manual
  • Angle of ViewH: 67.8° ~ 2.4°
  • Electronic Shutter1/1s~1/300,000s
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / WDR (120dB)
  • Optical Zoom30x
  • Digital Zoom16x
  • Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
  • Video CompressionH.265/H.264/MJPEG
  • Video StreamingMain stream: 1080P/720P(1 ~ 50/60fps), 1.3M(1 ~ 25/30fps) , Sub stream1: D1/CIF(1 ~ 25/30fps) , Sub stream2: 1080P/1.3M/720P/D1/ CIF (1 ~ 25/30fps)
  • Audio ComprerssionG.711a/G.711Mu/AAC/G.722 / G.726/G.729/ MPEG2-L2
  • Audio Streaming1/1 channel In/Out
  • IVSTripwire, Intrusion,Abandoned/Missing, Face Detection
  • NetworkingRJ-45 (10/100Base-T), 1RS485, 1RS232
  • ProtocolsIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x, ONVIF, PSIA, CGI
  • Alarm2/1 channel In/Out
  • Smart PhoneiPhone, iPad, Android Phone
  • Operating Temperature-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
  • DimensionΦ160mm×70mm×70mm
  • Weight1.0kg
  • Power SourceDC12V/1.5A, PoE(802.3af)
  • Power Consumption10W
  • RegulatoryCE, FCC, RoHS & UL
  • MemoryMicro SD, Max 128GB
  • Optical Zoom30x
