- Image Sensor1/3″ CMOS
- Effective Pixels2592(H) x 1520(V), 4 Megapixels
- S/N RatioMore than 55dB
- Minimum IlluminationColor: 0.05Lux@F1.6; 0Lux@F1.6(IR on)
- Focal Length4.5mm ~ 135.0mm
- White BalanceAuto, ATW, Indoor, Outdoor, Manual
- Focus ControlAuto / Manual
- Angle of ViewH: 60° ~ 2.2°
- Electronic Shutter1/50 ~ 1/30,000s
- AGC ControlAuto / Manual
- Back Light CompensationBLC / HLC / WDR (120dB)
- Optical Zoom30x
- Digital Zoom16x
- Pan Travel0° ~ 360° endless, Pan Speed: 0.1° ~ 300°/sec
- Tilt Travel-15° ~ 90°, auto flip 180°, Tilt Speed: 0.1° ~200°/sec
- Presets300
- Preset SpeedPan: 400° /s; Tilt: 300° /s
- Power up ActionAuto restore to previous PTZ and lens status after power failure
- Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
- Time TaskAuto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
- Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
- Video CompressionH.265 /H.264 / MJPEG
- Video StreamingMain Stream: 4M/3M(1~25/30fps)/1080P(1~50/60fps)/1.3M/720P(1~25/30fps), Sub Stream1: D1/CIF(1 ~ 25/30fps), Sub Stream 2: 1080P /960P/720P(1 ~ 25/30fps)
- Audio ComprerssionG.711a/G.711Mu/AAC/G.722 / G.726/G.729
- Auto Trackingsupport
- Audio Streaming1/1 channel In/Out
- IVSTripwire, Intrusion,Abandoned/Missing, Face Detection
- NetworkingRJ-45 (10/100Base-T)
- ProtocolsIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x,ONVIF, PSIA, CGI
- Alarm2/1 channel In/Out
- Smart PhoneiPhone, iPad, Android Phone
- Operating Temperature-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
- Weatherproof StandardIP66
- DimensionΦ186mm × 309mm
- Weight3.5 kg
- Power SourceAC24V/3A(±10%), PoE+(802.3at)
- Power ConsumptionPoE: 13W, 20W (IR on), AC24V: 13W, 23W (IR on)
- MemoryMicro SD, Max 128GB
- Optical Zoom30x
Network, Speed Dome(PTZ)

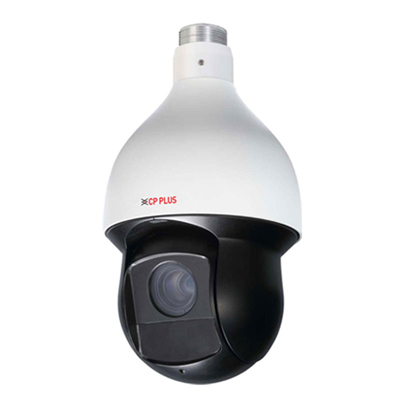

CP-UNP-3041L10DA-P 4MP 30x WDR IP IR PTZ Dome Camera – 100 Mtr.
- 1/3″ 4MP CMOS Image sensor
- Max. 25/30fps@4M, 50/60fps@1080P resolution
- Powerful 30x Optical and 16x Digital zoom
- H.265 and H.264 Encoding, Ultra-low bit rate transmission
- WDR (120dB), Day/Night(ICR), 3D DNR, Auto iris, Auto focus
- Up to 300 Presets, 8 Tour, 5 Pattern, 8 Auto scan, 8 Auto Pan
- Max 400°/s pan speed, 360° endless pan rotation
- Built-in 2/1 alarm in/out, IP66, PoE+ , Micro SD, 100 Mtr. IR
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro, vOptimus Pro
Compare
Based on 0 reviews
Be the first to review “CP-UNP-3041L10DA-P 4MP 30x WDR IP IR PTZ Dome Camera – 100 Mtr.”
Related products
-
Analog HD, Speed Dome(PTZ)
CP-UVP-F2520L15-D 2 MP 1080P HDCVI IR PTZ Camera
- 1/2.8″ 2Megapixel CMOS Image sensor
- Max. 25/30fps@1080P, 25/30/50/60fps@720P
- Powerful 25x Optical and 16x Digital zoom
- WDR(120dB), 3D DNR
- Up to 300 presets, 8 auto scan, 8 tour, 8 auto pan, 5 pattern
- IR Range of 150 Mtr.
- Max 240°/s pan speed, 360° endless pan rotation
- Built-in 2/1 alarm in/out, IP66
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro, vOptimus Pro
SKU: n/a -
-
Analog HD, Speed Dome(PTZ)
CP-UVP-2010L10 1 MP 20x HDCVI IR PTZ Camera
- 1/2.8″ Exmor HQIS Pro Image sensor
- Powerful 20x Optical and 16x Digital zoom
- DWDR, Day/Night(ICR), Ultra DNR
- Up to 300 Presets, 8 Tour, 5 Pattern, 5 Auto scan
- Max 160°/s pan speed, 360° endless pan rotation
- IR Range of 100 Mtr.
- IP66
- Mobile Software: iCMOB, gCMOB, wCMOB
- CMS Software: KVMS Pro, vOptimus Pro
