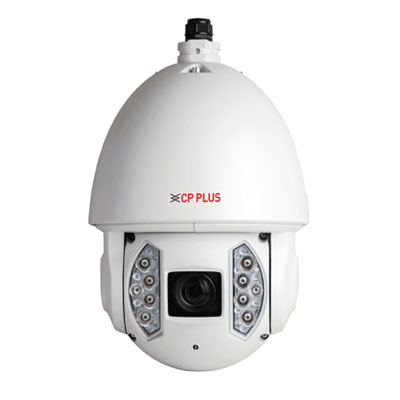

CP-UNP-3051L20A 5MP 30x Network IR PTZ Camera

CP Plus
Add to wishlist
Compare
  • 1/1.9″ CMOS Image sensor
  • Max 30fps@5Mp and 60fps@1080P resolution
  • Powerful 30x Optical zoom
  • DWDR, Day/Night(ICR), 3D DNR,Defog, EIS, BLC, HLC,AGC
  • Up to 300 Presets, 8 Tour, 5 Pattern, 8 Auto scan, 8 Auto Pan
  • Max 240°/s pan speed, 360° endless pan rotation
  • IR Range of 200 Mtr. , Support Hi-PoE
  • Built-in 7/2 alarm in/out, IP67, IK10
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

  • Image Sensor1/1.9″ CMOS Image Sensor
  • Effective Pixels2560(H) x 1920(V), 5 Megapixels
  • Video OutputBNC(1.0Vp-p/75O), PAL / NTSC
  • S/N RatioMore than 55dB
  • Minimum IlluminationColor: 0.01Lux@F1.5; 0Lux@F1.5(IR on)
  • Focal Length6mm ~ 180mm
  • White BalanceAuto, ATW, Indoor, Outdoor, Manual
  • Focus ControlAuto / Manual
  • Angle of ViewH: 61.2° ~ 2.1°
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / DWDR
  • Optical Zoom30x
  • Digital Zoom16x
  • Pan Travel0° ~ 360° endless, Pan Speed: 0.1° ~ 200°/sec
  • Tilt Travel-20° ~ 90°,, auto flip 180°, Tilt Speed: 0.1° ~120°/sec
  • Manual SpeedPan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
  • Presets300
  • Preset SpeedPan: 240° /s; Tilt: 200° /s
  • Power up ActionAuto restore to previous PTZ and lens status after power failure
  • Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
  • Video CompressionH.265/H.264 / MJPEG
  • Video StreamingMain Stream: 5M/3M/1.3M/720P(1~25/30fps), 1080P(1~50/60fps), Sub Stream1: D1/CIF(1 ~ 25/30fps), Sub Stream 2: 5M(1~20fps), 1080P/1.3M/720P(1~25/30fps)
  • Audio ComprerssionG.711a/G.711Mu/AAC/G.722/ G.726/ MPEG2-L2
  • Auto Trackingsupport
  • Audio Streaming1/1 channel In/Out
  • IVSTripwire, Intrusion,Abandoned/Missing, Face Detection
  • NetworkingRJ-45 (10/100Base-T), 1RS485
  • ProtocolsIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x, ONVIF, PSIA, CGI
  • Alarm7/2 channel In/Out
  • Smart PhoneiPhone, iPad, Android Phone
  • Operating Temperature-40ºC ~ 70ºC / Less than 95% RH
  • Weatherproof StandardIP67, IK10
  • DimensionΦ240mm × 382mm
  • Weight6.8 kg
  • Power SourceAC24V/3A(±25%), Hi-POE
  • Power Consumption24W, 38W (IR on)
  • MemoryMicro SD Card 128GB
  • Optical Zoom30x
