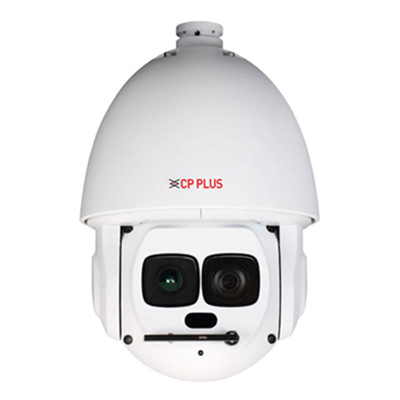

CP-UNP-4020R50A-P 2MP 40x IP IR PTZ Dome Camera

CP Plus
Add to wishlist
Compare
  • 1/2.8″ 2MP Exmor CMOS Image sensor
  • Max 60fps@720P and 30fps@1080P resolution
  • Powerful 40x Optical and 16x Digital zoom
  • DWDR, Day/Night(ICR), 3D DNR, BLC,HLC,AWB
  • Up to 300 Presets, 8 Tour, 5 Pattern, 8 Auto scan, 8 Auto Pan
  • Max 240°/s pan speed, 360° endless pan rotation
  • Auto-tracking and IVS, IR Range of 500 Mtr.
  • Built-in 7/2 alarm in/out, IP67, Hi-PoE, Micro SD
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

  • Image Sensor1/2.8″ Exmor CMOS
  • Effective Pixels1920(H) x 1080(V), 2 Megapixels
  • S/N RatioMore than 56dB
  • Minimum IlluminationColor: 0.05Lux@F1.6; 0Lux@F1.6 (IR on)
  • Focal Length7.9mm ~ 316mm
  • White BalanceAuto, ATW, Indoor, Outdoor, Manual
  • Focus ControlAuto / Manual
  • Angle of ViewH: 41.5° ~ 1.1°
  • Electronic Shutter1/1 ~ 1/30,000s
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / DWDR
  • Optical Zoom40x
  • Digital Zoom16x
  • Pan Travel0° ~ 360° endless, Pan Speed: 0.1° ~ 200°/sec
  • Tilt Travel-20° ~ 90°,, auto flip 180°, Tilt Speed: 0.1° ~120°/sec
  • Presets300
  • Preset SpeedPan: 240° /s; Tilt: 200° /s
  • Power up ActionAuto restore to previous PTZ and lens status after power failure
  • Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Time TaskAuto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
  • Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
  • Video CompressionH.264 / MJPEG
  • Video StreamingMain Stream: 1080P (1 ~ 25/30fps), 720P(1~50/60fps), Sub Stream1: D1/CIF(1 ~ 25/30fps), Sub Stream 2: 720P/D1/ CIF (1 ~ 25/30fps)
  • Audio ComprerssionG.711a / G.711u(32kbps)/ PCM(128kbps)
  • Auto Trackingsupport
  • Audio Streaming1/1 channel In/Out
  • IVSTripwire, Intrusion,Abandoned/Missing, Face Detection
  • NetworkingRJ-45 (10/100Base-T)
  • ProtocolsIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x, ONVIF, PSIA, CGI
  • Alarm7/2 channel In/Out
  • Smart PhoneiPhone, iPad, Android Phone
  • Operating Temperature-40ºC ~ 70ºC / Less than 90% RH
  • Weatherproof StandardIP67
  • DimensionΦ240(mm) x 357(mm)
  • Weight6.75 kg
  • Power SourceAC24V/3A(±25%), Hi-PoE
  • Power Consumption24W, 38W (IR on)
  • MemoryMicro SD, Max 128GB
  • Optical Zoom40x
