- Image Sensor1/2.8″ Exmor R CMOS
- Effective Pixels1920(H) x 1080(V), 2 Megapixels
- S/N RatioMore than 55dB
- Minimum IlluminationColor: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
- Focal Length4.5mm~135mm
- White BalanceAuto, ATW, Indoor, Outdoor, Manual
- Focus ControlAuto / Manual
- Angle of ViewH: 67.8° ~ 2.4°
- Electronic Shutter1/1s~1/300,000s
- AGC ControlAuto / Manual
- Back Light CompensationBLC / HLC / WDR(120dB)
- Optical Zoom30x
- Digital Zoom16x
- Pan Travel0°~360° endless, Pan Speed: 0.1° ~ 300°/sec
- Tilt Travel-15° ~ 90° auto flip 180°, Tilt Speed: 0.1° ~200°/sec
- Manual SpeedPan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
- Presets300
- Preset SpeedPan: 400° /s; Tilt: 300° /s
- Power up ActionAuto restore to previous PTZ and lens status after power failure
- Idle MotionActivate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
- Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
- Video CompressionH.265/H.264 / MJPEG
- Video StreamingMain stream: 1080P/720P(1 ~ 50/60fps), 1.3M(1 ~ 25/30fps), Sub stream1: D1/CIF(1 ~ 25/30fps), Sub stream2: 1080P/1.3M/720P/D1/ CIF (1 ~ 25/30fps)
- Audio ComprerssionG.711a/G.711Mu/AAC/G.722 / G.726/G.729
- Audio Streaming1/1 channel In/Out
- IVSTripwire, Intrusion,Abandoned/Missing, Face Detection
- NetworkingRJ-45 (10/100Base-T)
- ProtocolsIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x, ONVIF, PSIA, CGI
- Alarm2/1 channel In/Out
- Smart PhoneiPhone, iPad, Android Phone
- Operating Temperature-40ºC ~ 70ºC / Less than 90% RH
- Weatherproof StandardIP66
- DimensionΦ186.0(mm) x 309(mm)
- Weight3.5kg
- Power SourceAC24V/3A(±10%), PoE+(802.3at)
- Power Consumption13W,23W (IR on)
- MemoryUpto 128GB
- Optical Zoom30x
Network, Speed Dome(PTZ)

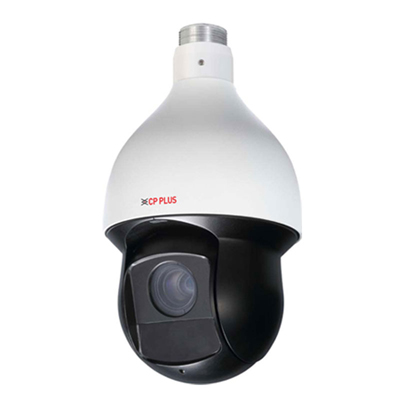

CP-UNP-E3021L15-DAP 2 MP 1080P IR IP PTZ Camera
- 1/2.8″ 2MP Exmor R CMOS Image sensor
- Max. 50/60fps@1080P, 25/30/50/60fps@720P
- Powerful 30x Optical and 16x Digital zoom
- WDR(120dB), 3D DNR, Day/Night(ICR), AGC,BLC, HLC
- Up to 300 presets, 8 auto scan, 8 tour, 5 pattern, 8 auto pan
- IR Range of 150 Mtr. , IP66, Support PoE Plus
- Max 300° /s pan speed, 360° endless pan rotation
- Built-in 2/1 alarm in/out
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro, vOptimus Pro
