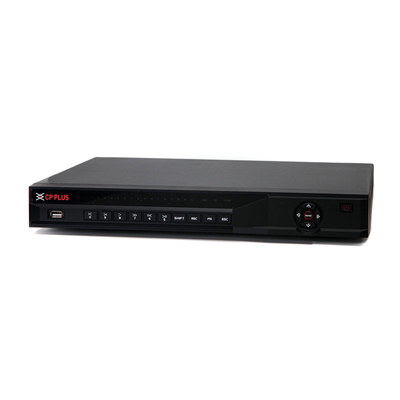

CP-UNR-208T2-P8V2 8 Ch. 8PoE Network Video Recorder

ProcessorDual-core embedded processor
Operating SystemEmbedded LINUX
IP Camera Input8 channel
Two-way Talk1 channel Input, 1 channel Output, RCA
User InterfaceGUI
Video Output1 HDMI, 1 VGA
CompressionH.264+/H.264
Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768
Motion DetectionMD Zones: 396(22×18).
Camera Blanksupports
Hard Disk2 SATA III ports, up to 12TB
Smart PhoneiPhone, iPad, Android Phone
Trigger EventsRecording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Recording ModeManual, Schedule(Regular(Continuous), MD, Stop
Search ModeTime /Date, MD and Exact Search (accurate to second)
PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom
Backup ModeUSB Device / Network
Interface Ports1 HDMI, 1 VGA, 2 ports (1 RearUSB2.0, 1 FrontUSB2.0), 1 RJ45
Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Max User Account128 users
Ethernet1 RJ-45 port (10/100M) , 1 Independent 100Mbps Ethernet Port, 8 PoE ports (IEEE802.3at/af)
ProtocolsHTTP, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search, ONVIF 2.4, CGI Conformant
Power SupplyDC53V/2.3A
Power Consumption<4.5W (without HDD)
Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
Dimension375mm x 275mm x 53mm
Weight1.6kg (without HDD)
