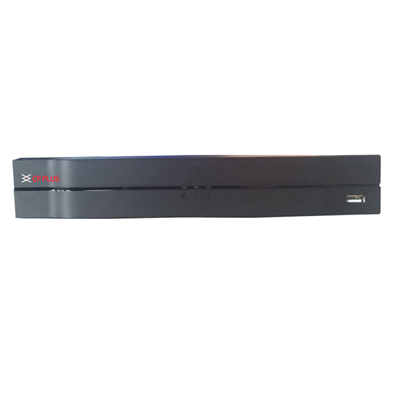

CP-UNR-216T1-V2 16 Ch. Network Video Recorder

CP Plus

  • H.264Plus /H.264 dual codec decoding
  • Max 80Mbps incoming bandwidth
  • Up to 6MP Resolution Preview and Playback
  • Support 1 SATA HDDs up to 6TB, 2 USB Ports
  • HDMI / VGA simultaneous video output
  • Support Multi-brand network cameras
  • ONVIF Version 2.4 conformance
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS, KVMS Pro

  • ProcessorDual-core embedded processor
  • Operating SystemEmbedded LINUX
  • IP Camera Input16 channel
  • Two-way Talk1 channel Input, 1 channel Output, RCA
  • User InterfaceGUI
  • CompressionH.264+/ H.264
  • Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768
  • Motion DetectionMD Zones: 396(22×18)
  • Video Losssupports
  • Camera Blanksupports
  • Hard Disk1 SATA III ports, up to 6TB
  • Smart PhoneiPhone, iPad, Android Phone
  • Trigger EventsRecording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
  • Recording ModeManual, Schedule(Regular(Continuous), MD, Stop
  • Search ModeTime/Date, Alarm, MD & Exact search (accurate to second)
  • PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom
  • Backup ModeUSB Device / Network
  • Interface Ports1 HDMI, 1 VGA, 2 USB Ports (1 Rear 2.0, 1 Front 2.0), 1 RJ45
  • Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
  • Max User Account128 users
  • Ethernet1 RJ-45 port (10/100Mbps) , 1 Independent 100Mbps Ethernet Port
  • ProtocolsHTTP, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search, ONVIF 2.4, CGI Conformant
  • Power SupplyDC12V/2A
  • Power Consumption<2.4W (without HDD)
  • Working Temp-10°C ~ +55°C / 10~90%RH / 86~106kpa
  • Dimension260mm x 224.9mm x 47.6mm
  • Weight0.8 kg(without HDD)
