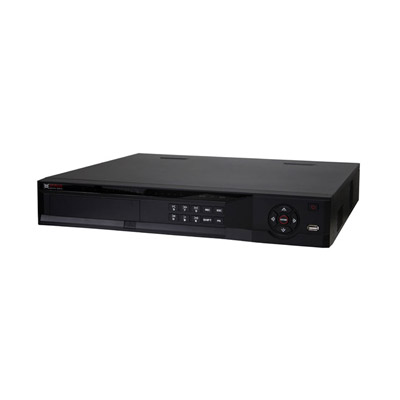

CP-UNR-432T4 32 Ch. Network Video Recorder

CP Plus
Add to wishlist
Compare
  • 32 Ch. with 1080p Realtime Live View
  • H.264/MJPEG dual codec decoding
  • Up to 5Mp resolution preview&playback
  • Max 200Mbps incoming bandwidth
  • Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB, 2 USB(1 USB3.0)
  • HDMI / VGA / TV simultaneous video output
  • Support Multi-brand network cameras
  • ONVIF Version 2.3 conformance
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS, KVMS Pro

  • ProcessorDual-core embedded processor
  • Operating SystemEmbedded LINUX
  • IP Camera Input32 channel
  • Two-way Talk1 channel Input, 1 channel Output, RCA
  • User InterfaceGUI
  • Video Output1 HDMI, 1 VGA
  • CompressionH.264 / MJPEG
  • Video Resolution2560 × 1920, 2048 × 1536, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
  • Video RecordingMax 128 Mbps
  • Motion DetectionMD Zones: 396(22×18).
  • Video Losssupports
  • Camera Blanksupports
  • Alarm Input16 channel
  • Alarm Output4 channel
  • Hard Disk4 SATA ports, up to 16TB, Raid (Redundancy), 1 eSATA port
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Trigger EventsRecording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen
  • Recording ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
  • Search ModeTime/Date, Alarm, MD & Exact search (accurate to second), Smart search
  • PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom
  • Backup ModeUSB Device / Internal SATA burner/ Network
  • Interface Ports1 HDMI, 1 VGA, 2 USB2.0, 1 RS485, 1 RS232, 1 RJ45
  • Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
  • Max User Account128 users
  • Ethernet1 RJ-45 port (10/100M/1000M)
  • ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,PPPOE, DDNS, FTP, Alarm Server,ONVIF Version 2.3
  • Power SupplyAC 100V~240V,50/60HZ
  • Power Consumption40W(without HDD)
  • Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
  • Dimension440mm×410mm×70mm
  • Weight6 Kg (without HDD)
