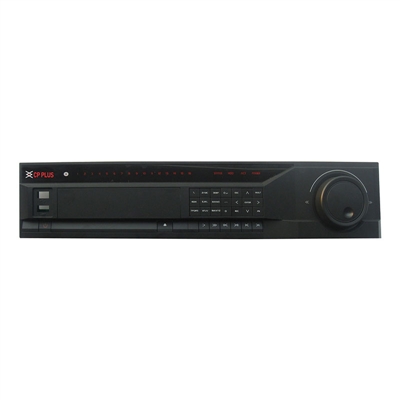

CP-UNR-4K4328 32 Ch. H.265 4K Network Video Recorder

CP Plus

  • Up to 32 channel IP camera input
  • H.265/H.264/MJPEG dual codec decoding
  • Up to 12Mp resolution preview and playback
  • Max 256Mbps incoming bandwidth
  • Support 8 SATA HDDs up to 48TB, 4 USB(2 USB3.0), 1 eSATA port up to 16TB
  • 2 HDMI / 1 VGA simultaneous video output
  • Support Multi-brand network cameras
  • ONVIF Version 2.4 conformance
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS, KVMS Pro

  • ProcessorDual-core embedded processor
  • Operating SystemEmbedded LINUX
  • IP Camera Input32 channel
  • Two-way Talk1 channel Input, 1 channel Output, RCA
  • User InterfaceGUI
  • Video Output2 HDMI, 1 VGA
  • CompressionH.264 / MJPEG
  • Video Resolution3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768
  • Motion DetectionMD Zones: 396(22×18).
  • Video Losssupports
  • Camera Blanksupports
  • Alarm Input8 channel
  • Alarm Output3 channel
  • Hard Disk8 SATA III ports, up to 48TB, 1 eSATA port
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Trigger EventsRecording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen
  • Recording ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
  • Search ModeTime/Date, Alarm, MD & Exact search (accurate to second), Smart search
  • PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom
  • Backup ModeUSB Device / Internal SATA burner/ Network
  • Interface Ports2 HDMI, 1 VGA, 3 USB2.0, 1 RS485, 1 RS232, 2 RJ45
  • Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
  • Max User Account128 users
  • Ethernet2 RJ-45 port (10/100/1000Mbps)
  • ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,PPPOE, DDNS, FTP, Alarm Server,ONVIF Version 2.4
  • Power SupplyAC 100~240V, 50/60 Hz
  • Power Consumption17W for normal model(without HDD)
  • Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
  • Dimension440mm × 405mm × 76mm
  • Weight4.35KG for normal model(without HDD)
