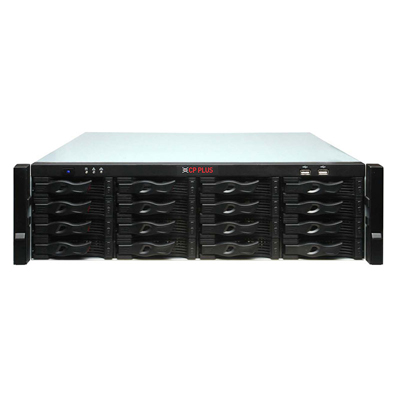

CP-UNR-4K6128R16-EV2 128 Ch. H.265 4K Network Video Recorder

CP Plus
Add to wishlist
Compare
  • Up to 128 channel IP camera input
  • Up to 12Mp resolution preview and playback
  • Max 384Mbps incoming bandwidth
  • Support 16 SATA III ports, up to 96TB, 4 USB(2 USB3.0), 1 eSATA port
  • Support iSCSI and Mini SAS to expand storage space
  • 2 HDMI / 1 VGA simultaneous video output
  • Support Multi-brand network cameras
  • Support RAID 0/1/5/6/10/50/60
  • Redundant power supply module adopted
  • ONVIF Version 2.4 conformance
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS, KVMS Pro

Compare
  • ProcessorIntel Quad-core Processor
  • Operating SystemEmbedded LINUX
  • IP Camera Input128 channel
  • Two-way Talk1 channel Input, 1 channel Output, RCA
  • User InterfaceGUI
  • Video Output2 HDMI(up to 3840× 2160), 1 VGA, 4 HDMI(Optional)
  • CompressionH.265/H.264 / MJPEG
  • Video Resolution3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768
  • Motion DetectionMD Zones: 396(22×18).
  • Video Losssupports
  • Camera Blanksupports
  • Alarm Input16ch, low level effective, green terminal interface
  • Alarm Output8 Channel, NO/NC Programmable, Green Terminal Interface
  • Hard Disk16 SATA III ports, up to 96TB, 1 eSATA
  • Smart PhoneiPhone, iPad, Android
  • Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
  • HDD Managementsingle, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare)
  • Recording ModeManual, Schedule (Regular, MD (Motion Detection),Alarm, IVS), Holiday, Stop
  • Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
  • Playback128Mbps in Raid 5 mode, 64Mbps in single HDD mode
  • Backup ModeUSB Device/Network/eSATA Device
  • Interface Ports2 HDMI, 1 VGA, 4 USB ports(3 USB2.0, 1 USB3.0), 1 Mini SAS port, for storage expansion, 1 RS485, 1 RS232, 4 RJ45
  • Record Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30sec, Post-record: 10 ~ 300 sec
  • Max User Account128 users
  • Ethernet4 RJ-45 Ports (10/100/1000Mbps), 4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports
  • ProtocolsHTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP,SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,Alarm Server, IP Search , ONVIF 2.4, CGI Conformant
  • Power SupplyAC100V ~ 240V, 50 ~ 60 Hz, Redundant
  • Power Consumption<51W (Without HDD)
  • Working Temp-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
  • Dimension485mm x 512.9mm x 133.2mm (19.1″ x 20.2″ x 5 .2″)
  • Weight19.1kg (42.1 lb) (without HDD)
