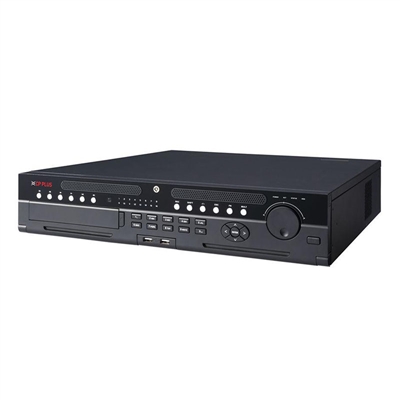

CP-UNR-4K664R8 64 Ch. H.264 4K Super Network Video Recorder

CP Plus
Add to wishlist
Compare
  • Up to 64 channel IP camera input
  • Up to 12Mp resolution preview and playback
  • Max 384Mbps incoming bandwidth
  • Support 8 SATA HDDs up to 48TB, 4 USB(2 USB3.0), 1 eSATA port
  • Support iSCSI to expand storage space
  • 2 HDMI / 1 VGA simultaneous video output
  • Support Multi-brand network cameras
  • Support RAID 0/1/5/6/10/50/60
  • ONVIF Version 2.4 conformance
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS, KVMS Pro

  • ProcessorDual-core embedded processor
  • Operating SystemEmbedded LINUX
  • IP Camera Input64 channel
  • Two-way Talk1 channel Input, 1 channel Output, RCA
  • User InterfaceGUI
  • Video Output2 HDMI(up to 3840× 2160), 1 VGA
  • CompressionH.264H / H.264 / MJPEG
  • Video Resolution3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768
  • Motion DetectionMD Zones: 396(22×18).
  • Video Losssupports
  • Camera Blanksupports
  • Alarm Input16ch, low level effective, green terminal interface
  • Alarm Output8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface
  • Hard Disk8 SATA III ports, up to 48TB, 1 eSATA port
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Trigger EventsRecording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
  • RAIDsingle, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare)
  • Recording ModeManual, Schedule(Regular(Continuous), MD(Video detection: Motion detection,Camera blank, Video loss), Alarm), Stop
  • Search ModeTime/Date, Alarm, MD & Exact search (accurate to second), Smart search
  • Playback128Mbps in Raid 5 mode, 64Mbps in single HDD mode
  • Backup ModeUSB Device/Network/Internal SATA burner/eSATA Device
  • Interface Ports2 HDMI, 1 VGA, 4 USB ports(3 USB2.0, 1 USB3.0), 1 RS485, 1 RS232, 2 RJ45
  • Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
  • Max User Account128 users
  • Ethernet2 RJ-45 port (10/100M/1000M), 2 Ethernet ports joint working or 2 independent 1000Mbps Ethernet ports
  • ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,PPPOE, DDNS, FTP, Alarm Server,ONVIF Version 2.4
  • Power SupplyAC110V~240V, 50~60Hz
  • Power Consumption40W(without HDD)
  • Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
  • Dimension486mm × 454.9mm × 91mm
  • Weight<9kg (without HDD)
