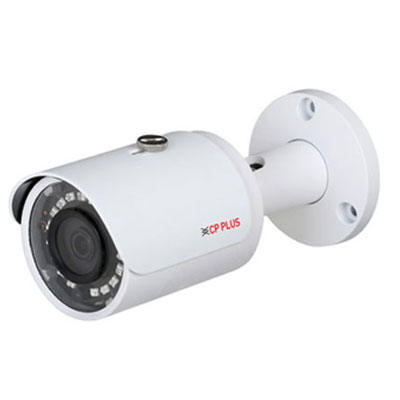

CP-USC-TB24L3-DS 2.4 MP WDR IR Cosmic Bullet Camera – 30Mtr.

CP Plus

  • 1/2.8″ 2.4 MP PS CMOS Image Sensor
  • Max 30fps@2.4MP
  • WDR(120dB), Day/Night(ICR), 2D/3D DNR, AWB, AGC, BLC, HLC
  • 3.6mm lens (2.8mm, 6mm optional)
  • OSD Menu, control over coaxial cable, 2D-DNR
  • IR Range of 30 Mtrs. , IP67
  • HD and SD switchable

  • Image Sensor1/2.8″ PS CMOS
  • Minimum Illumination0.005Lux/F1.6, 30IRE, 0Lux IR on
  • Effective Pixels2.4MP
  • Shutter SpeedPAL: 1/4s~1/100000s , NTSC: 1/3s~1/100000s
  • White BalanceAuto / Manual
  • Lens3.6mm (2.8mm, 6mm Optional)
  • AGC ControlAuto / Manual
  • S/N RatioMore than 65dB
  • Back Light Comp.BLC / HLC / WDR(120dB)
  • Video Streaming25/30fps@2.4MP, 25/30fps@720P
  • Video Output1-channel BNC high definition video output / CVBS video output (Can switch)
  • ICRAuto (ICR) / Manual
  • IRIR Range of 30 Mtr.
  • No. of IR LEDs18pcs
  • Operating Temperature-40°C~+60°C / Less than 90%RH
  • Power Source12V DC ±25%
  • Power ConsumptionMax 3.4W (12V DC, IR on)
  • Weatherproof StandardIP67
  • Dimension164.7mm x 70mm x 71.6mm
  • Weight0.4kg
