- Image Sensor1/2.7″ 2.4MP PS CMOS
- Minimum Illumination0.02Lux/F1.3, 30IRE, 0Lux IR on
- Shutter SpeedPAL: 1/25~1/100000s , NTSC: 1/30~1/100000s
- White BalanceAuto / Manual
- Lens2.7mm-13.5mm Varifocal Lens
- AGC ControlAuto / Manual
- S/N RatioMore than 65dB
- Back Light Comp.BLC / HLC / DWDR
- Video Streaming25/30fps@2.4MP , 25/30/50/60fps@720P
- Video Output1-channel BNC high definition video output / CVBS video output (Can switch)
- ICRAuto (ICR) / Manual
- IRArray Range of 30 Mtr.
- No. of IR LEDs2pcs
- Operating Temperature-40°C~+60°C / Less than 90%RH
- Power Source12V DC ±25%
- Power ConsumptionMax 3.4W (12V DC, IR on)
- Weatherproof StandardIP67, IK10
- DimensionΦ122mm x 88.9mm (Φ4.8″×3.5″)
- Weight0.39 kg
2.4 MP, Analog HD Camera

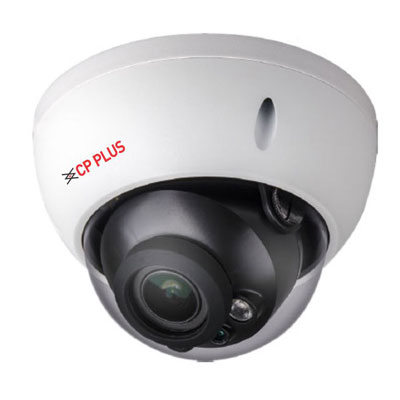

CP-USC-VA24FR3 2.4 MP Array Cosmic Vandal Dome Camera – 30 Mtr.
- 1/2.7″ 2.4MP CMOS Image Sensor
- Max 30fps@2.4MP
- DWDR, Day/Night(ICR), 2D-DNR, AWB, AGC, BLC, HLC
- 2.7mm-13.5mm Varifocal lens
- OSD Menu, control over coaxial cable, 2D-DNR
- Array Range of 30 Mtrs., IP67, IK10
- HD and SD switchable
