- ProcessorEmbedded processor
- Operating SystemEmbedded LINUX
- IP Camera Input16+8 Channel, each channel up to 5MP
- Two-way TalkReuse audio in/out, RCA
- User InterfaceGUI
- Video Input16 channel, BNC
- Video Output1 HDMI, 1 VGA
- Video StandardAnalog: NTSC/PAL
- CompressionH.264+/H.264
- Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768
- Audio Input1 channel, RCA
- Audio Output1 channel, RCA
- Motion Detectionsupports
- Video Losssupports
- Camera Blanksupports
- Hard Disk1 SATA port, up to 6TB
- Smart PhoneiPhone, iPad, Android Phone
- Trigger EventsRecording, PTZ, Tour, Alram Out, Video Push, Email, FTP, Spot, Buzzer & Screen tips
- Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Search ModeTime/Date, Alram, MD & Exact search (accurate to second)
- PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
- Backup ModeUSB Device/Network
- Interface Ports1 HDMI, 1 VGA, 2 USB(1 USB 2.0 , 1 USB 3.0), 1 RS485
- Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Max User Account128 users
- EthernetRJ-45 port (10/100M/1000M)
- ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 2.4.1, CGI Conformant
- Power SupplyDC12V/3A
- Power Consumption<15W (without HDD)
- Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
- Dimension325mm × 255mm × 55mm
- Weight1.5Kg(without HDD)
16 Ch., Digital Video Recorder (DVR)

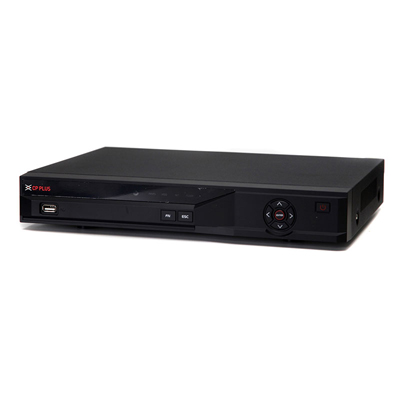

CP-UVR-1601F1-S 16Ch. 1080P Cosmic HD DVR
- Auto Adaptive HDCVI/AHD/TVI/CVBS signals
- Support upto 5MP IP Camera
- All channel 1080P Realtime Recording
- H.264Plus/ H.264 dual-stream Video Compression
- HDMI / VGA Simultaneous Video Output
- Support 1 SATA HDD up to 6TB, 1 USB 2.0 , 1 USB 3.0
- Mobile Software: iCMOB, gCMOB
- CMS Software:KVMS, KVMS Pro
