- ProcessorEmbedded processor
- Operating SystemEmbedded LINUX
- IP Camera Input16+8 Channel, each channel up to 5MP
- Two-way TalkReuse audio in/out, RCA
- User InterfaceGUI
- Video Input16 channel, BNC
- Video Output1 HDMI (up to 3840 x 2160),1 VGA
- Video StandardNTSC(525Line, 60f/s), PAL(625Line, 50f/s)
- CompressionH.264+/H.264
- Video Resolution4MP, 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
- Audio Input1 channel
- Audio Output1 channel
- Motion DetectionMD Zones: 396 (22 × 18)
- Video Losssupports
- Camera Blanksupports
- Hard Disk2 SATA port, up to 12TB
- Smart PhoneiPhone, iPad, Android Phone
- Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Recording ModeRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
- PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup ModeUSB Device / Network
- Interface Ports1 HDMI, 1 VGA, 1 RS485, 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
- Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
- Max User Account128 users
- Ethernet1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
- ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 2.42, CGI Conformant
- Power SupplyDC12V/5A
- Power Consumption<15W (Without HDD)
- Working Temp-10 ~+55°C / 10~90%RH
- Dimension375mm x 287mm x 53mm
- Weight2.35kg (without HDD)
16 Ch., Digital Video Recorder (DVR)

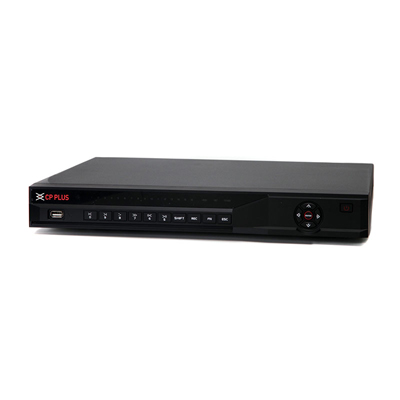

CP-UVR-1601FM2 16 Ch. 4MP HDCVI DVR
- Support HDCVI / CVBS video inputs
- Support upto 5MP IP Camera
- H.264Plus / H.264 dual-stream video compression
- Max 96Mbps Incoming Bandwidth
- All channel 4MP Non-Realtime Recording
- HDMI / VGA Simultaneous Video Output
- Support 2 SATA HDD up to 12TB, 2 USB Ports
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS, KVMS Pro
Compare
Based on 0 reviews
Be the first to review “CP-UVR-1601FM2 16 Ch. 4MP HDCVI DVR”
