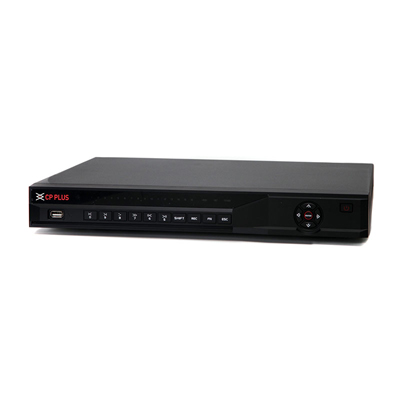

CP-UVR-1604F2-V3 16 Ch. Tribrid 1080P HDCVI DVR

CP Plus

  • Support HDCVI/Analog/IP Video input
  • All channel 1080P Realtime Recording
  • H.264 dual-stream Video Compression
  • HDMI / VGA Simultaneous Video Output
  • Support 2 SATA HDD up to 12TB, 2 USB2.0
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software:KVMS, KVMS Pro

  • ProcessorEmbedded processor
  • Operating SystemEmbedded LINUX
  • Two-way TalkReuse audio input/output channel 1
  • User InterfaceGUI
  • Video Input16 channel, BNC
  • Video Output1 HDMI, 1 VGA
  • Video StandardAnalog: NTSC/PAL, HDCVI: 1080P/720P HDCVI Camera, IP: 16+8 up to 5Mp
  • Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768
  • Audio Input4 channel, RCA
  • Audio Output1 channel, RCA
  • Motion Detectionsupports
  • Video Losssupports
  • Alarm Input16 channel
  • Alarm Output3 channel
  • Hard Disk2 SATA port, up to 12TB
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
  • Recording ModeManual, Schedule(Regular(Continuous), MD), Stop
  • Search ModeTime/Date, MD & Exact search (accurate to second)
  • PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
  • Backup ModeUSB Device/Internal SATA burner/Network
  • Interface Ports1 HDMI, 1 VGA, 2 USB2.0, 1 RS485
  • Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
  • Max User Account128 users
  • EthernetRJ-45 port (10/100M/1000M)
  • ProtocolsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P, ONVIF Version 2.4 conformance
  • Power SupplyDC12V/5A
  • Power Consumption15W(without HDD)
  • Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
  • Dimension375mm x 285mm x 55mm
  • Weight2.35Kg(without HDD)
