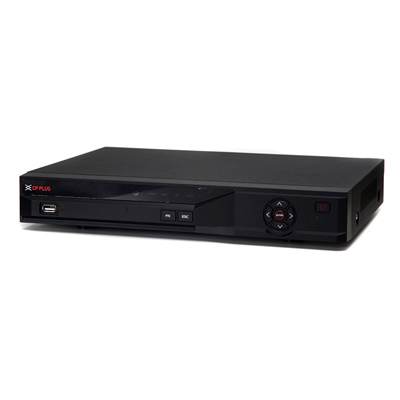

CP-UVR-1616E1-S 16 Ch. 1080P Lite Cosmic HD DVR

CP Plus
Add to wishlist
Compare
  • Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
  • Support upto 5MP IP Camera
  • All channel 1080P Lite Non-Realtime Recording
  • H.264 dual-stream Video Compression
  • HDMI / VGA Simultaneous Video Output
  • Support 1 SATA HDD up to 6TB, 2 USB2.0
  • Mobile Software: iCMOB, gCMOB
  • CMS Software:KVMS, KVMS Pro

Compare
  • ProcessorEmbedded processor
  • Operating SystemEmbedded LINUX
  • IP Camera Input16+2: each channel up to 5MP
  • Two-way TalkReuse audio in(channel 1)/out, RCA
  • User InterfaceGUI
  • Video Input16 channel, BNC
  • Video Output1 HDMI, 1 VGA
  • Video StandardAnalog: NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
  • CompressionH.264
  • Video Resolution1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
  • Audio Input16 channel
  • Audio Output1 channel
  • Motion Detectionsupports
  • Video Losssupports
  • Camera Blanksupports
  • Alarm Input16 channel
  • Alarm Output3 channel
  • Hard Disk1 SATA port, up to 6TB
  • Smart PhoneiPhone, iPad, Android, Phone
  • Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
  • Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
  • Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
  • PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
  • Backup ModeUSB Device/Network
  • Interface Ports1 HDMI, 1 VGA, 2 USB2.0, 1 RS485, 1 RJ45
  • Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
  • Max User Account128 users
  • EthernetRJ-45 port (10/100M)
  • ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search, ONVIF 2.4.1, CGI Conformant
  • Power SupplyDC12V/2A
  • Power Consumption<10W(without HDD)
  • Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
  • Dimension325mm x 255mm x 55mm
  • Weight1.5KG (without HDD)
