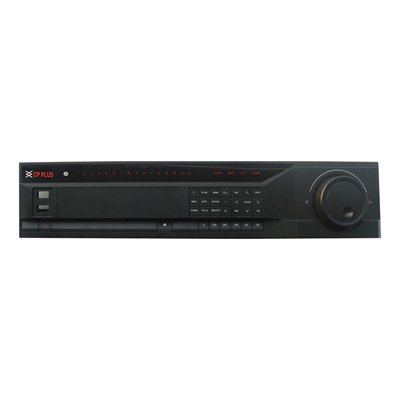

CP-UVR-1616K8D 16 Ch. 720P-Advanced HDCVI DVR

CP Plus

  • Support HDCVI/Analog/IP Video input
  • All channel 720P Realtime or 1080P non-Realtime Recording
  • H.264 dual-stream Video Compression
  • HDMI / VGA Simultaneous Video Output
  • Support Multi-brand network cameras
  • Support 8 SATA HDD up to 32TB,1 eSATA, 4 USB2.0, DVDRW
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software:KVMS, KVMS Pro

  • ProcessorEmbedded processor
  • Operating SystemEmbedded LINUX
  • Two-way Talk1 channel Input, 1 channel Output, BNC
  • User InterfaceGUI
  • Video Input16 channel, BNC
  • Video Output1 HDMI, 1 VGA, 1 TV
  • Video StandardAnalog: NTSC(525Line, 60f/s), PAL(625Line, 50f/s), HDCVI: 1080P/720P HDCVI Camera, IP: 1080P/720P/D1/CIF IP Camera
  • CompressionH.264 / G.711
  • Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768
  • Audio Input16 channel, RCA
  • Audio Output1 channel, RCA
  • Motion Detectionsupports
  • Video Losssupports
  • Camera Blanksupports
  • Alarm Input16 channel
  • Alarm Output6 channel
  • Hard Disk8 SATA ports(8HDDs or 6HDDs+1CD/DVD-RW), up to 32TB, 1 eSATA port, up to 16TB
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
  • Recording ModeManual, Schedule(Regular(Continuous), MD), Stop
  • Search ModeTime/Date, MD & Exact search (accurate to second)
  • PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
  • Backup ModeUSB Device/Internal SATA burner/Network
  • Interface Ports1 HDMI, 1 VGA, 4 USB2.0, 1 RS485, 1RS232
  • Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
  • Max User Account128 users
  • EthernetRJ-45 port (10/100M/1000M)
  • ProtocolsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P, ONVIF Version 2.4 conformance
  • Power SupplyAC 100~240 V, 50/60 Hz
  • Power Consumption40W(Without HDD)
  • Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
  • Dimension440mm × 460mm × 89mm
  • Weight6.5KG(without HDD)
