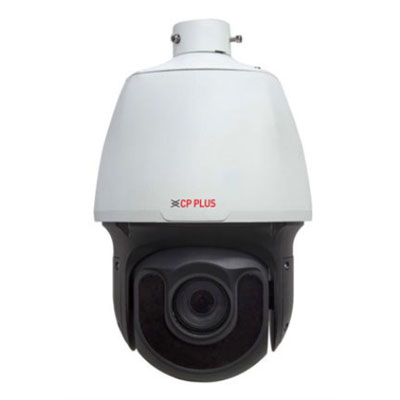

CP-VNP-3321L20-DAS 2MP Full HD WDR Network IR PTZ Camera – 200 Mtr.

CP Plus
Add to wishlist
Compare
  • 1/2.8″ 2 MP PS Image Sensor
  • Max.60 fps@1080P (1920×1080)
  • Powerful 33x Optical Zoom
  • WDR(120 dB), Day/Night(ICR), BLC, HLC, AWB
  • H.265, H.264, MJPEG Triple Stream Supported
  • Up to 256 Presets, Preset patrol, route patrol, Recorded patrol
  • Max 240°/s pan speed, 360° endless pan rotation
  • Built-in 2/1 alarm in/out, IP66
  • IR Range of 200 Mtr., Micro SD
  • Supports Instastream technology, save diskspace and bandwidth upto 70%
  • Mobile Software: Android, iOS
  • CMS Software: IVMS

  • Image Sensor1/2.8″ 2MP CMOS
  • Video Output1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
  • S/N RatioMore than 52dB
  • Minimum IlluminationColour: 0.002 Lux (F1.6, AGC ON) 0 Lux with IR on
  • Focal Length4.5mm ~ 148.5 mm
  • White BalanceAuto / Manual
  • Focus ControlAuto / Manual
  • Iris ControlAuto/Manual; F1.6 ~ F5.3
  • Angle of View62.93° (wide) ~ 3.76° (tele)
  • Electronic ShutterAuto/Manual; shutter time: 1/6 s ~ 1/100000 s
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / WDR(120dB)
  • Optical Zoom33x
  • Digital Zoomsupports
  • Pan Travel360° endless, Pan Speed: 0.1°/s ~ 240°/s
  • Tilt Travel–15° ~ +90° (auto reverse), Tilt Speed: 0.1° ~160°/sec
  • Presets256
  • Preset SpeedPan: 300° /s; Tilt: 240° /s
  • Special FeaturesIR Range upto 200m, Up to 256 Presets, Preset patrol, Route patrol, Recorded patrol
  • Privacy MaskUp to 8 areas
  • Day/Night: IR Cut FilterIR-cut filter with auto switch (ICR)
  • Video CompressionH.265, H.264, MJPEG
  • Video StreamingTriple Stream
  • Frame Rate1080P (1920×1080): Max.60 fps
  • Audio ComprerssionG.711a
  • Audio StreamingTwo way Talk Supported
  • IVSIntrusion, crossing line, motion detection, Auto tracking, Audio detection, Face detection, People counting
  • Networking10M/100M Base-TX Ethernet, 1 RS485
  • ProtocolsIPv4/v6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, L2TP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, ONVIF, API
  • Alarm2 In/1 Out
  • Operating Temperature-40°C ~ +70°C (-40°F ~ 158°F), Humidity <95% RH(non-condensing)
  • Weatherproof StandardIP66
  • DimensionØ227 x 359.4 mm (Ø8.9” x 14.2”)
  • Weight5.5kg
  • Power Source24 V AC (Default), 24 V DC
  • Power Consumption8W ~52.5W
  • MemoryUp to 128 GB
  • Optical Zoom33x
