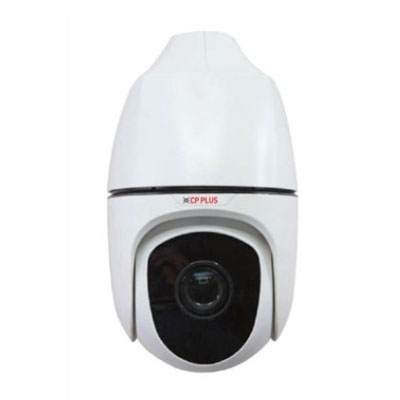

CP-VNP-4421L25-DAS 2MP Full HD WDR Network IR PTZ Camera – 250 Mtr.

Description

• Image Sensor1/2.8″ 2MP CMOS
• Video Output1 BNC, impedance 75 O; amplitude 1 V [p-p]
• S/N Ratio>52dB
• Minimum IlluminationColour: 0.002 lux (F1.2, AGC ON) 0 lux with IR
• Focal Length5mm ~ 220 mm
• White BalanceAuto / Manual
• Focus ControlAuto / Manual
• Iris ControlAuto/Manual; F1.2 ~ F3.5
• Angle of View60.6° (wide) ~ 1.8° (tele)
• Electronic ShutterAuto/Manual; shutter time: 1/6 s ~ 1/100000 s
• AGC ControlAuto / Manual
• Back Light CompensationBLC / HLC / WDR(120dB)
• Optical Zoom44x
• Digital Zoomsupports
• Pan Travel360° endless, Pan Speed: 0.1°/s ~ 240°/s
• Tilt Travel–15° ~ +90° (auto reverse), Tilt Speed: 0.1° ~160°/sec
• Presets256
• Preset SpeedPan: 300° /s; Tilt: 240° /s
• Day/Night: IR Cut FilterIR-cut filter with auto switch (ICR)
• Video CompressionH.265, H.264, MJPEG
• Video StreamingMax.60 fps@1080P (1920×1080) , Max.15 fps@1080P (1920×1080) , Max.8 fps@D1 (720×576) , Max.60 fps@1080P (1920×1080) , Max.30 fps@720P (1280×720) , Max.15 fps@D1 (720×576)
• Audio ComprerssionG.711a
• Audio StreamingTwo way Talk Supported
• IVSIntrusion, crossing line, motion detection, Auto tracking, Audio detection, Face detection, People counting
• Networking10M/100M Base-TX Ethernet, 1 RS485
• ProtocolsL2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x, ONVIF, API
• Alarm2 In/1 Out
• Operating Temperature– 45°C~70°C(- 49°F ~ 158°F), Humidity ≤ 95% RH(non- condensing)
• Weatherproof StandardIP67
• DimensionΦ270mm x 496.7mm(Φ10.6” x 19.6”)
• Weight9.69 kg
• Power Source24 V±25% AC (Default), 24 V±25% DC
• Power Consumption16 ~56W
• MemoryMicro SD, up to 128GB
• Optical Zoom44x
