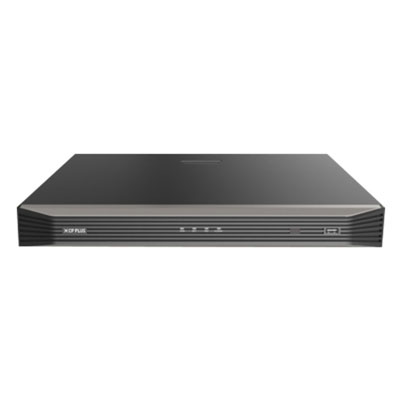

CP-VNR-3232 32 Ch. 4K Network Video Recorder
- 32 Channel IP Camera Input
- H.265/H.264 dual Video Formats
- Support 4K Resolution Upto 12MP Recording
- 160 Mbps Incoming/ 320Mbps Outgoing Bandwidth
- Support camera video analytics, Provides analytics based search
- Support 2 SATA HDDs up to 16TB, 3 USB Ports
- Support Multi-brand network cameras
- Mobile Software: Android, iOS
- CMS Software: IVMS
- ProcessorDual-core embedded processor
- Operating SystemEmbedded LINUX
- IP Camera Input32 channel
- Two-way Talk1 channel, RCA
- User InterfaceGUI
- Video OutputHDMI, VGA , 4K (3840×2160) @60Hz, 4K (3840×2160) @30Hz, 1920x1080p @60Hz, 1920x1080p @50Hz, 1600×1200 @60Hz, 1280×1024 @60Hz, 1280×720 @60Hz, 1024×768 @60Hz
- CompressionH.265 / H.264
- Video ResolutionUpto 12MP, 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Audio Input1 channel, RCA
- Audio Output1 channel, RCA
- Alarm Input8 channel
- Alarm Output2 channel
- Hard Disk2 SATA ports, up to 16 TB
- Playback16 Channel
- Interface Ports3 USB Port, 1 RS485, 2 RJ45
- Max User Account128
- Ethernet2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
- ProtocolsHTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P, ONVIF
- Power Supply12V DC
- Power Consumption= 20 W
- Working Temp-10°C ~ + 55°C ( +14°F ~ +131°F )
- Dimension46mm × 315mm × 380mm ( 1.8″ × 12.4″ × 15.0″ )
- Weight≤ 2.48 Kg (without HDD)
