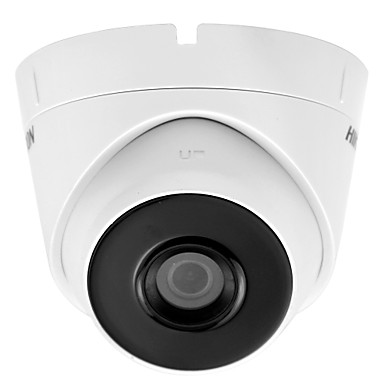

DS-2CD1341-I 4.0 MP CMOS NetworkTurret Camera

Hikvision

1/3″ progressive scan CMOS
 Up to 4.0 megapixel
 2.8mm/4mm/6mm fixed focal lens
 Up to 30 m IR range
 Dual stream
 Digital WDR (Wide Dynamic Range)
 3D DNR (Digital Noise Reduction)
 PoE (Power over Ethernet)
 IP67
 Mobile monitoring via Hik-Connect or iVMS-4500

Camera
Image Sensor 1/3″ progressive scan CMOS
Min. Illumination Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR
Shutter Speed 1/3s to 1/100,000 s, supportslow shutter
Lens
2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.0, horizontal field of view 83.6°
6 mm @F2.0, horizontal field of view 55°
Lens Mount M12
Day &Night IR cut filter with auto switch
3-Axis Adjustment Pan: 0° to 360°, tilt: 0°to 75°, rotation:0° to 360°
DNR(Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) Digital WDR
Compression Standard
Video Compression Main stream: H.264+/H.264
Sub stream: H.264/MJPEG
H.264 Type Main Profile/High profile
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 2688 × 1520
Main Stream
Max. Frame Rate
50Hz: 20fps @(2688 × 1520),20fps @(2304 × 1296), 25fps @(1920 × 1080, 1280 × 720)
60Hz:20fps @(2688 × 1520),20fps @(2304 × 1296), 30fps @(1920 × 1080, 1280 × 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps @(640 × 360, 352 × 288)
60Hz: 30fps @(640 × 360, 352 × 240)
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Network Storage NAS (NFS,SMB/CIFS)
Detections Motion detection
Alarms Video tampering, network disconnected, IP address conflicted
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Standard ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions -30 °C to60 °C (-22 °F to140 °F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af)
Power Consumption Max. 4 W/6 W (PoE)
Ingress Protection IP67
IR Range Up to 30 m
Dimensions Φ 110 mm × 93.2 mm (4.33″× 3.67″)
Weight 570 g (1.3 lb.)
