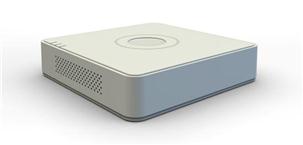

DS-7104HGHI-F1Turbo HD DVR

Hikvision

• H.264 /H.264+& Dual-stream video compression

• Support both HD-TVI /analog and AHD cameras with
adaptive access
• Full channel recording at up to 1080P lite resolution

• HDMI and VGA output at up to 1920×1080P resolution
• Long transmission distance over coax cable
• Support  4/8/16-ch synchronous playback at 720P resolution

Video/Audio Input
Audio Input: | 1-ch
Video Compression: | H.264,H.264+
Analog and HD-TVI video input: | 4-ch BNC interface (1.0Vp-p, 75 Ω)
Supported camera types: | Support HDTVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz,
Support AHD input: 720P/25Hz, 720P/30Hz,
support CVBS input
Video Input Interface: | BNC (1.0 Vp-p, 75Ω)
Audio Compression: | G.711u
Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution: | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF;
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate: | Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate: | 32 Kbps ~ 4 Mbps
Stream Type: | Video/Video&Audio
Audio Output: | 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: | 64kbps
Dual Stream: | Support
Playback Resolution: | 1080p lite/720p/WD1/4CIF/VGA/CIF
Synchronous Playback: | 4-ch
Network management
Remote connections: | 32
Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk Driver
Interface Type: | 1 SATA Interface
Capacity: | Up to 6 TB capacity for each disk
External Interface
Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: | 2 USB 2.0 Interfaces
General
Power Supply: | 12V DC
Consumption: | ≤ 8W
Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity: | 10% ~ 90%
Dimensions: | 200 × 200 × 45mm (7.9 × 7.9 × 1.8 inch)
Weight: | ≤ 0.8 kg / 1.8 lb(without hard disks)
