Video/Audio Input | ||
---|---|---|
Audio Input: | | | 1-ch |
Video Compression: | | | H.264,H.264+ |
Analog and HD-TVI video input: | | | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Supported camera types: | | | Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz Note: The 3 MP signal input is only available for the first 2 channels of DS-7208HQHI-F2/N, and the first 4 channels of DS-7216HQHI-F2/N. Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz support CVBS input |
IP Video Input: | | | 2-ch Up to 2MP resolution |
Video Input Interface: | | | BNC (1.0 Vp-p, 75Ω) |
Audio Compression: | | | G.711 |
Audio Input Interface: | | | RCA (2.0 Vp-p, 1 kΩ) |
Two-way Audio: | | | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
Video/Audio Output | ||
CVBS Output: | | | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480 |
HDMI/VGA Output: | | | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
Recording resolution: | | | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF |
Frame Rate: | | | Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
Video Bit Rate: | | | 32 Kbps-6 Mbps |
Stream Type: | | | Video/Video&Audio |
Audio Output: | | | 1-ch RCA(Linear, 1kΩ) |
Audio Bit Rate: | | | 64kbps |
Dual Stream: | | | Support |
Playback Resolution: | | | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
Synchronous Playback: | | | 16-ch |
Network management | ||
Remote connections: | | | 128 |
Network protocols: | | | TCP/IP, PPPoE, DHCP, Hik Cloud P2P,DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
Hard Disk Driver | ||
Interface Type: | | | 2 SATA Interfaces |
Capacity: | | | Up to 6 TB capacity for each disk |
External Interface | ||
Network Interface: | | | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
USB Interface: | | | 1 USB 2.0 Interface |
1 Ch., Digital Video Recorder (DVR)

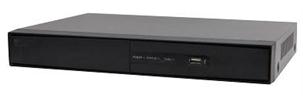

DS-7216HQHI-F2/NTurbo HD DVR
• H.264 ,H.264+& Dual-stream video compression
• Support HD-TVI, IPC,AHD and analog cameras with
adaptive access
• Up to 3 MP resolution for recording of the first 2 channels of DS-7208HQHI-F2/N, and the first 4 channels of DS-7216HQHI-F2/N
• Support 1080P lite mode enabled to realize the real-time
1080P lite and 720P lite resolution
• Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution for DS-7208HQHI-F2/N and 4K (3840 × 2160) resolution for HDMI output of DS-7216HQHI-F2/N
• Long transmission distance over coax cable
• Up to 4/8-ch synchronous playback at 1080p resolution
• Playback at up to 256X speed.
