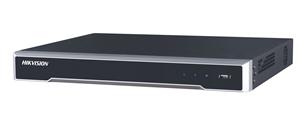

DS-7616NI-K2Embedded 4K NVR

Hikvision

• Third-party network cameras supported
• Up to 8 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840×2160)

resolution

• 4-ch network cameras can be connected with
40M/60M/80M incoming bandwidth
• Support dual-os to ensure high reliablility of system

running

•Support various VCA detection alarm and VCA search

•Support H.265/H.264/MPEG4 video formats

Compare
Video/Audio Input
IP video input: | 16-ch
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth: | 160Mbps
Outgoing bandwidth: | 160Mbps
Remote connection: | 128
Video/Audio Output
HDMI Output: | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: | 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback: | 16-ch
VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Live view / Playback: | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: | 8-ch@1080P
Hard Disk
SATA: | 2 SATA interfaces for 2 HDDs
Capacity: | Up to 6TB capacity for each HDD
External Interface
Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface: | Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm In: | 4-ch
Alarm Out: | 1-ch
General
Power Supply: | 100 to 240VAC
Consumption(without hard disk and POE): | ≤ 15 W
Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: | 10 % ~ 90 %
Chassis: | 385 mm chassis
Dimensions: | 385 × 315× 52 mm (15.2″ 12.4″ 2.0″)
Weight(without HDD): | ≤ 3 kg (6.6 lb)
