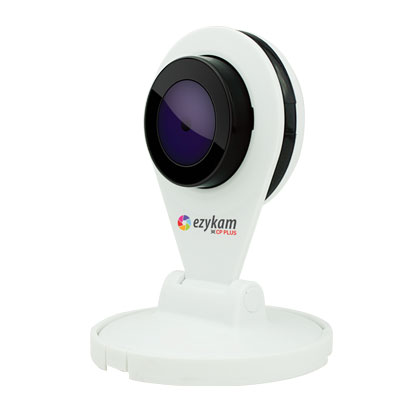

EPK-EC10L1 (EC10) 1MP IR Cube Camera – 10 Mtr.

CP Plus

  • 1 Megapixel CMOS Image Sensor
  • 0.5 Lux Minimum Illumination
  • Max 25/30fps@720P(1280×720)
  • Supports Micro SD Card Upto 128 GB
  • Supports Wi-Fi
  • Two way communication
  • H.264 & MJPEG dual-stream encoding
  • IR Range of 10 Mtr.

  • Image Sensor1 MP CMOS Image Sensor
  • Minimum Illumination0.5 lux
  • Effective Pixels1280(H) x 720(V), 1 Megapixel
  • Lensf=3.6mm F=1.2 M12 Glass Lens
  • Video CompressionH.264
  • Resolution1280×720/ 640×360
  • Frame Rate1-25fps
  • Snapshotsupport
  • Motion Detectionsupport(4 Areas)
  • ICRsupport IR-CUT and Night vision
  • Audio Outputsupport
  • Audio ComprerssionG.711
  • Event NotificationEmail notification / Alarm Record / Alarm snapshot
  • Bit Rate256Kbps – 6Mbps
  • WirelessWEP & WPA & WPA2 、IEEE 802. 11b / g / n、AP / Client mode
  • ProtocolTCP/IP、DHCP、SMPT、HTTP、DDNS、UPNP、PPPoE, Onvif
  • SecurityPassword / Users management / Authority Management
  • Internet BrowserIE / Safari / Firefox / Google Chrome
  • Smart PhoneAndroid / IOS
  • IR10 Mtrs.
  • Micro SDUpto 128 GB
  • Operating Temperature– 10°C~+55°CHum.:10%~90%, Storage Temp: – 10°C~+60°CHum.:10%~90%
  • Power SourceDC 5V/1A (Micro USB)
  • Power ConsumptionDC5V/2A/6W (Max)
  • Dimension85mm x 85mm x 120mm
  • WeightNo
