Camera
Image Sensor 1/4’’ Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON) , 0.028Lux @ (F2.0, AGC ON) , 0 Lux with IR
Shutter Speed 1/3 s ~ 1/100,000 s
Lens 4mm@ F2.0, Angle of view: 73.1°(6/8/12mm optional)
Lens Mount M12
Day & Night IR cut filter with auto switch
WDR Digital WDR
Compression Standard
Video Compression H.264/MJPEG
H.264 Type Baseline Profile / Main Profile
Video Bit Rate 32 Kbps – 8 Mbps
Max. Resolution 1280 × 720
Frame Rate 50Hz: 25fps(1280 × 720)
60Hz: 30fps (1280 × 720 )
Image Enhancement BLC/3D DNR
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web
browser
Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict,
Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filtering, anonymous access
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication
Interface 1 RJ45 10M/100M Ethernet interface
Reset Button Yes
General
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply 12V DC±10%, PoE (802.3af) for non”-D”
Power Consumption Max. 6W
Protection Level IP66
IR Range 30m
Dimensions Φ70×155.1 mm
Weight 500g (1.1 lbs)
1 MP, Network Camera

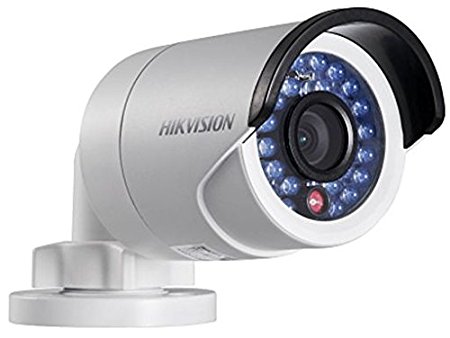

DS-2CD1002(D)-I 1 MP CMOS IR Network Bullet Camera
1/4” Progressive Scan CMOS
Up to 1 megapixel resolution
Digital WDR
3D DNR
30 meters IR range
12V DC±10% & PoE(802.3af) for non”-D”
IP66
