32 Ch., Network Video Recorder (NVR)

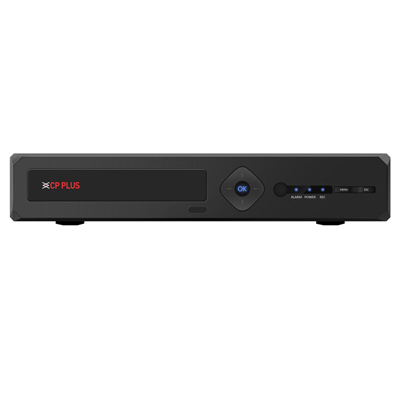

CP-ENR-2432 32 Ch. Network Video Recorder
- Up to 5MP resolution preview and playback
- H.264 Video Compression
- Support 2 SATA HDDs up to 12TB, 2 USB2.0
- HDMI / VGA simultaneous video output
- Support Multi-brand network cameras
- ONVIF Supports
- Mobile Software: RMOB
- CMS Software: RVMS
- ProcessorDual-core embedded processor
- Operating SystemEmbedded LINUX
- IP Camera Input32 channel
- System Resourcessimultaneous multi-channel real-time recording, playback, network operation, USB backup
- User InterfaceGUI
- Video Input32CH. @2MP/16CH. @4MP / 8CH. @5MP
- Video Output1 HDMI, 1 VGA
- CompressionH.264/ G.711A
- Video Resolution2560 × 1920, 2048 × 1536, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
- Audio Input1 Channel
- Audio Output1 Channel
- Motion Detectionsupports
- Hard Disk2 SATA ports, up to 12TB
- Smart PhoneiPhone, iPad, Android Phone
- Recording ModeManual,Alarm,Video Detection,Continuous
- Search Modesearch by Time/calendar/event/channel
- Playback4CH@1080P/ 4CH@4MP/ 2CH@5MP
- Backup ModeNetwork backup, USB hard disk, USB burner, SATA burner
- Interface Ports1 HDMI, 1 VGA, 2 USB2.0, 1 RJ45, 1RS485
- Ethernet1 RJ-45 port (10/100/1000M)
- ProtocolsHTTP, TCP/IP, UDP, IPV4/IPV6, UPNP, RTSP, SMTP, NTP, DHCP, DNS, FTP, P2P, ONVIF, CGI
- Power Supply12V/4A
- Power Consumption<10W(Without HDD)
- Working Temp0°C-＋55°C / 10%－90%RH / 86kpa－106kpa
- Dimension310mm x 298mm x 60mm
- WeightAround 1.6 Kg
