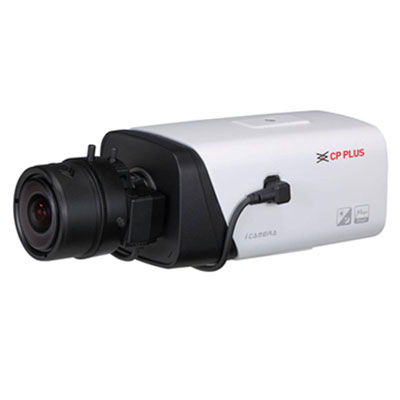

CP-UNC-BH31-VMD 3 MP WDR Box Camera
- 1/2.8″ 3MP PS CMOS Image Sensor
- Max 25/30fps@3MP
- H.265/ H.264/ MJPEG dual-stream encoding
- WDR(upto 140dB), Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
- C/CS Mount Lens, PoE
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro, vOptimus Pro
- Image Sensor1/2.8″ 3MP Progressive scan CMOS
- Minimum Illumination0. 005Lux/F1.2(Color), 0.0005Lux/F1.2(B/W)
- Effective Pixels2048(H) x 1536(V)
- Shutter SpeedAuto/Manual, 1/3(4)~1/100000s
- White BalanceAuto/Manual
- LensC/CS Mount Lens
- AGC ControlAuto/Manual
- Video CompressionH.265/H.264/MJPEG
- S/N RatioMore than 50dB
- Back Light Comp.BLC/ HLC/ WDR(140dB)
- Video StreamingMain Stream:3M/1080P (1~25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps), Third Stream: 1080P/720P/D1(1 ~ 25/30fps)
- Resolution3M(2048× 1536)/1080P(1920× 1080) / 720P(1280× 720) /D1(704× 576) /CIF(352× 288)
- Video Output1 channel BNC(1.0Vp-p,75O)
- ICRAuto(ICR)/Color/B/W
- ROIUp to 4 areas
- Audio Input1 Channel
- Audio Output1 Channel
- Audio ComprerssionG.711a / G.711u
- Alarm IN2 Channel In
- Alarm Out1 Channel Out
- Bit RateH.264: 40K ~ 10Mbps
- ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI
- Smart DetectionTripwire, Intrusion, Scene Change, Missing/Abandoned, Audio detect, Face detect, People counting, Heat map
- User Account20 Users
- Smart PhoneiPhone, iPad, Android Phone
- Micro SDMax 128GB
- Operating Temperature-30°C~+60°C , Less than 90%RH
- Power SourceDC12V(AC24V optional), PoE (802.3af)
- Power ConsumptionMax 10W
- Dimension71.4mm×65.5mm×135.4mm
- Weight0.58Kg
