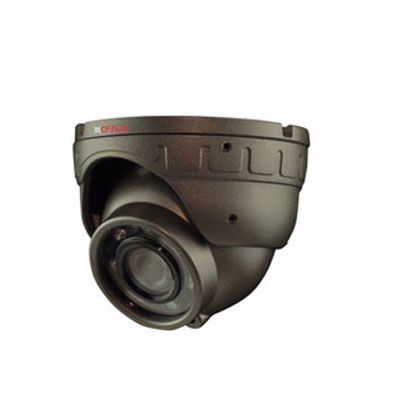

CP-SC-D10L1-V 1MP AHD IR Mobile Camera – 10 Mtr.

Description

• Image Sensor1/3″ 1.3 MP CMOS Image Sensor
• Minimum Illumination0 Lux when IR on
• Shutter SpeedAuto
• White BalanceAuto
• Lens3.6mm, 2.8mm optional
• AGC ControlAuto
• S/N Ratio≥50dB (AGC off)
• Back Light Comp.ON/OFF Selectable
• Resolution720P (1.0 MP)
• Video OutputAHD standard output, 4-pin aviation cable
• Audio Input(Support band-pass filter) Optional
• Scanning System2:1 interlaced
• Sync. SystemInter-sync
• Gamma Correction0.45
• IR10 Mtrs.
• Operating Temperature-40°C ~ 70°C
• Power Source12V DC ± 10%
• Power Consumption120mA/DC 12V±5% (IR on); 70mA/DC12V±5% (Without IR)
• Weight205g
