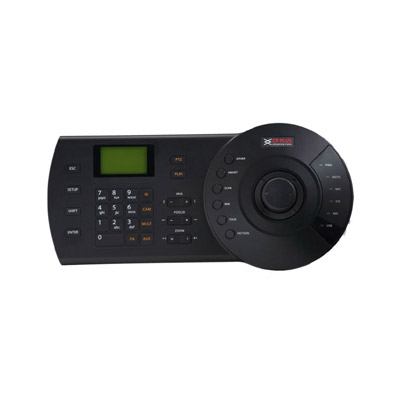

CP-UNK-331 Network Keyboard

Description

• Keyboard KeypanelElectromechanical
• Joystick3-axis, vector-solving, with twisting, return to-center head
• Keyboard ConnectorRJ-45,RS232,RS485,RS422,USB
• Keyboard CommunicationDirect Mode, Network Mode
• Direct ModeInterface: RS232/RS485
• Network ModeInterface: RJ45 DVR/Network Dome: IP Address/Port/Protocol
• ResolutionLCD, 75.2mm x 33.85mm
• Power SupplyPower adapter, input 100V~240V 50Hz / 60Hz,output DC12V/1000mA
• Power Consumption5W
• Working Temp-10~+55℃
• Working Humidity10%~90%
• Atmosphere Pressure86kpa~106kpa
• Dimension330mmx160(140)mmx37.5(21)mm (W× D×H) (height: 100mm including
• Weight2.5Kg
