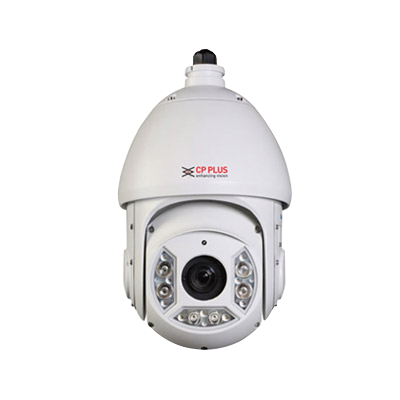

CP-UNP-3020SL10 2 MP Full HD IP PTZ Camera

CP Plus
Add to wishlist
Compare
  • 1/2.8″ CMOS Image sensor
  • Powerful 30x Optical and 16x Digital zoom
  • DWDR, Day/Night(ICR), Ultra DNR
  • Up to 255 Presets, 8 Tour, 5 Pattern, 5 Auto scan
  • Max 240°/s pan speed, 360° endless pan rotation
  • IR Range of 100 Mtr.
  • Built-in 2/1 alarm in/out, IP66
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

Compare
  • Image Sensor1/2.8″ CMOS
  • Effective Pixels1944(H) x 1092(V), 2 Megapixels
  • Video OutputBNC(1.0Vp-p/75O), PAL / NTSC
  • S/N RatioMore than 50dB
  • Minimum IlluminationColor: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6
  • Focal Length4.3mm~129mm
  • White BalanceAuto, ATW, Indoor, Outdoor, Manual
  • Focus ControlAuto / Manual
  • Angle of ViewH: 65.1° ~ 2.34°
  • Electronic Shutter1/1 ~ 1/30,000s
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / DWDR
  • Optical Zoom30x
  • Digital Zoom16x
  • Pan Travel360° endless, Pan Speed: 0.1° ~ 160°/sec
  • Tilt Travel-15° ~ 90°, Tilt Speed: 0.1° ~120°/sec
  • Presets255
  • Preset SpeedPan: 240° /s; Tilt: 200° /s
  • Power up ActionAuto restore to previous PTZ and lens status after power failure
  • Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Time TaskAuto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
  • Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
  • Video CompressionH.264 / MJPEG
  • Video StreamingMain Stream: 25/30fps@1080P/720P, Sub Stream: 25/30fps@D1/CIF
  • Audio ComprerssionG.711a / G.711u(32kbps)/ PCM(128kbps)
  • Audio Streaming1/1 channel In/Out
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF Profile S
  • Alarm2/1 channel In/Out
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Operating Temperature-40ºC ~ 60ºC / Less than 90% RH
  • Weatherproof StandardIP66
  • DimensionΦ204.7(mm) x 359.9(mm)
  • Weight7.8kg
  • Power SourceAC 24V/2.2A(±10%)
  • Power Consumption10.5W, 26W (IR on, Heater on)
  • MemoryMicro SD, Max 64GB
  • Optical Zoom30x
