- Image Sensor1/2.8″ Exmor HQIS Pro
- Effective Pixels1920(H) x 1080(V)
- Video Output1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
- S/N RatioMore than 50dB
- Minimum IlluminationColor: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
- Focal Length4.8mm~120mm (25x Optical zoom)
- White BalanceAuto, ATW, Indoor, Outdoor, Manual
- Focus ControlAuto / Manual
- Angle of ViewH: 59.2° ~ 2.4°
- Electronic Shutter1/1 ~ 1/30,000s
- AGC ControlAuto / Manual
- Back Light CompensationBLC / HLC / WDR(120dB)
- Optical Zoom25x
- Digital Zoom16x
- Pan Travel0°~360° endless, Pan Speed: 0.1° ~ 300°/sec
- Tilt Travel-15° ~ 90° auto flip 180°, Tilt Speed: 0.1° ~200°/sec
- Presets300
- Preset SpeedPan: 400° /s; Tilt: 300° /s
- Power up ActionAuto restore to previous PTZ and lens status after power failure
- Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
- Time TaskAuo activation of Prese/Pan/Scan/Tour/Pattern by preset-time
- Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
- Audio Streaming1 channel In
- Networking1 RS485
- ProtocolsPelco-P/D (Auto recognition)
- Alarm2/1 channel In/Out
- Operating Temperature-40ºC ~ 70ºC / Less than 90% RH
- Weatherproof StandardIP66
- DimensionΦ186.0(mm) x 309(mm)
- Weight3.5kg
- Power SourceAC24V/3A (±10%)
- Power Consumption13W,23W (IR on)
- Optical Zoom25x
Analog HD, Speed Dome(PTZ)

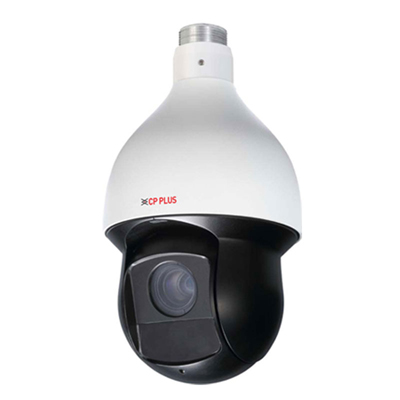

CP-UVP-E2520L15-D 2 MP 1080P HDCVI IR PTZ Dome Camera
- 1/2.8″ Exmor HQIS Pro Image sensor
- Max. 25/30fps@1080P, 25/30/50/60fps@720P
- Powerful 25x Optical and 16x Digital zoom
- WDR(120dB), 3D DNR
- Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
- IR Range of 150 Mtr.
- Max 400°/s pan speed, 360° endless pan rotation
- Built-in 2/1 alarm in/out, IP66
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro, vOptimus Pro
Compare
Based on 0 reviews
Be the first to review “CP-UVP-E2520L15-D 2 MP 1080P HDCVI IR PTZ Dome Camera”
