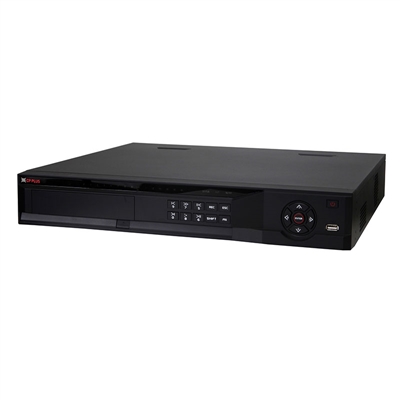

CP-UVR-1604E4D 16 Ch. 720P Tribrid HDCVI DVR

Description

• ProcessorEmbedded processor
• Operating SystemEmbedded LINUX
• Two-way Talk1 channel Input,1 channel Output, BNC
• User InterfaceGUI
• Video Input16 channel, BNC
• Video Output1 HDMI, 1 VGA ,1 TV
• Video StandardAnalog: NTSC/PAL, HDCVI: 720P HDCVI Camera, IP: Support 2ch 1080P/720P IP Camera
• CompressionH.264 / G.711
• Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768
• Audio Input4 channel, RCA
• Audio Output1 channel, RCA
• Motion Detectionsupports
• Video Losssupports
• Camera Blanksupports
• Alarm Input16 Channel
• Alarm Output6 Channel
• Hard Disk4 SATA port 2 HDD + 1 CD/DVDRW), up to 16TB, 1 eSATA port (Max 4 SATA HDDs), up to 16TB
• Smart PhoneiPhone, iPad, Android, Windows Phone
• Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
• Recording ModeManual, Schedule(Regular(Continuous), MD), Stop
• Search ModeManual, Schedule(Regular(Continuous), MD), Stop
• PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
• Backup ModeUSB Device/eSATA Device/Internal SATA burner/Network
• Interface Ports1 RS485, 1 RS232, 3 USB2.0
• Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
• Max User Account128 users
• EthernetRJ-45 port (10/100M/1000M)
• ProtocolsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
• Power SupplyAC 100~240 V, 50/60 Hz
• Power Consumption40W(Without HDD)
• Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
• Dimension440mm× 460mm× 89mm
• Weight6KG(without HDD)
