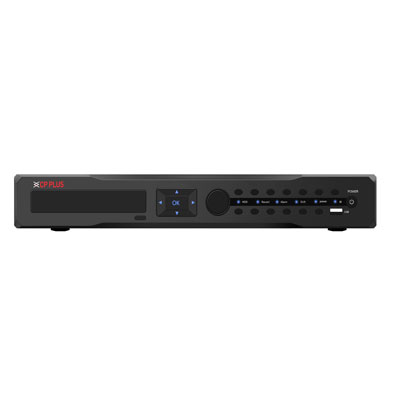

CP-ER-3216K4-T 32 Ch. 1080P Astra DVR

CP Plus

  • H.264 dual-stream video compression
  • All channel 1080P Non-Realtime Recording
  • Support AHD, TVI,CVI, CVBS, IP Video input
  • HDMI / VGA simultaneous video output
  • Support 4 SATA HDD up to 32TB, 2 USB2.0
  • Mobile Software: RMOB
  • CMS Software: RVMS

  • ProcessorHigh performance embedded microprocessor
  • Operating SystemEmbedded LINUX
  • User InterfaceGUI
  • Video Input32 channel, BNC
  • Video Output1 HDMI, 1 VGA
  • Video StandardAnalog: 32Ch. @1080P (15fps) , IP: 64Ch. @1080P , 32Ch. @3M , 16Ch. @5M
  • CompressionH.264 / G.711a
  • Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
  • Audio Input16 channel
  • Audio Output1 channel
  • Alarm Input16 Channel
  • Alarm Output4 Channel
  • Hard Disk4 SATA port, up to 32TB
  • Smart PhoneiPhone, iPad, Android
  • HDD ManagementHDD Storage, Network Storage
  • Recording ModeManual>Alarm>Motion detection>Timing
  • Search Modesearch by Time/Calendar/Event/Channel
  • Playback16 Ch.
  • Backup ModeNetwork, USB, SATA
  • Interface Ports2 USB 2.0, 1 RS485, 1 RS232, 1 RJ45
  • EthernetRJ45 10M/100/1000M Adaptive Ethernet port
  • ProtocolsHTTP, TCP/IP, UDP, IPV4, UPNP, RTSP, SMTP, NTP, DHCP, DNS, FTP, P2P, ONVIF, CGI
  • Power Supply12V/6A
  • Power Consumption<10W(Without HDD)
  • Working Temp0 °C – + 55 °C, 10% -90% RH
  • Dimension440mm(L) x 400.5mm(W) x 64mm(H)
  • Weight4KG
