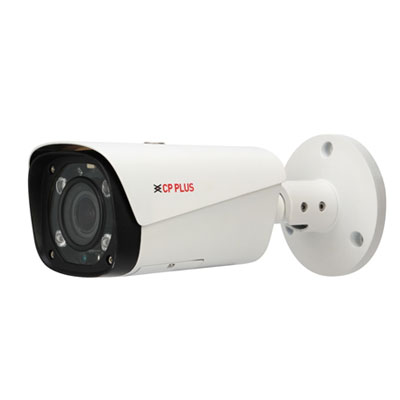

CP-UNC-TB20ZL6S-VMD-V2 2 MP Full HD IR Bullet Camera – 60Mtr.


  • 1/2.7″ 2Megapixel progressive CMOS
  • Max 25/30fps@1080P
  • H.264 and MJPEG dual-stream encoding
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • 2.7 -12mm Motorized Lens
  • IR Range of 60 Mtrs, IP67,PoE, SD Card
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

  • Image Sensor1/2.7″ 2MP PS scan CMOS
  • Minimum Illumination0.1Lux/F1.4(Color), 0Lux/F1.4(IR on)
  • Effective Pixels1920(H)x1080(V)
  • Shutter SpeedAuto/Manual, 1/3(4)~1/100000s
  • White BalanceAuto/Manual
  • Lens2.7 -12mm Motorized Lens
  • AGC ControlAuto/Manual
  • Video CompressionH.264/ H.264H/ MJPEG
  • S/N RatioMore than 50dB
  • Back Light Comp.BLC/ HLC/ WDR(120dB)
  • Video StreamingMain Stream:1080P (1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps)
  • Resolution1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240)
  • ICRAuto(ICR)/Color/B/W
  • Audio Input1 channel In
  • Audio Output1 channel Out
  • Audio ComprerssionG.711a/ G.711u
  • Alarm IN1 channel In
  • Alarm Out1 channel Out
  • ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, 802.1x, ONVIF, PSIA, CGI
  • User Account20 Users
  • Smart PhoneiPhone, iPad, Android Phone
  • IRIR Range of 60 Mtr.
  • Micro SDMicro SD , Max 128GB
  • Operating Temperature-30°C~+60°C , Less than 95%RH
  • Power SourceDC12V, PoE (802.3af)
  • Power ConsumptionMax 13W
  • Weatherproof StandardIP67
  • Dimension72mm×80mm×212.8mm
  • Weight0.65kg
