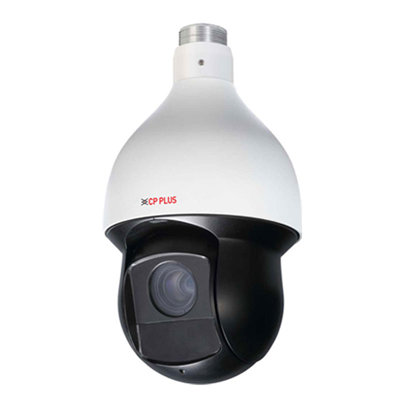

CP-UNP-2013TL10-P 1.3 MP Full HD IP IR PTZ Camera

CP Plus
Add to wishlist
Compare
  • 1/3″ CMOS Image sensor
  • Powerful 20x Optical and 16x Digital zoom
  • Support Triple-streams encoding
  • Max. 25/30fps@1.3MP and 720P Resolution
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Up to 300 Presets, 8 Tour, 5 Pattern, 5 Auto scan
  • Max 400°/s pan speed, 360° endless pan rotation
  • IR Range of 100 Mtr.
  • Built-in 2/1 alarm in/out, IP66, PoE Plus
  • Mobile Software: iCMOB, gCMOB, wCMOB

Compare
  • Image Sensor1/3″ CMOS
  • Effective Pixels1280(H) x 960(V), 1.3Megapixels
  • S/N RatioMore than 55dB
  • Minimum IlluminationColor: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4
  • Focal Length4.7mm ~ 94.0mm
  • White BalanceAuto, ATW, Indoor, Outdoor, Manual
  • Focus ControlAuto / Manual
  • Angle of ViewH: 54.1° ~ 3.2°
  • Electronic Shutter1/3 ~ 1/30,000s
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / DWDR
  • Optical Zoom20x
  • Digital Zoom16x
  • Pan Travel0° ~ 360° endless, Pan Speed: 0.1° ~ 300°/sec
  • Tilt Travel-15° ~ 90°,, auto flip 180°, Tilt Speed: 0.1° ~200°/sec
  • Presets300
  • Preset SpeedPan: 400° /s; Tilt: 300° /s
  • Power up ActionAuto restore to previous PTZ and lens status after power failure
  • Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Time TaskAuto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
  • Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
  • Video CompressionH.264 / MJPEG
  • Video StreamingMain Stream: 1.3MP & 720P(1 ~ 25/30fps), Sub Stream : D1/CIF(1 ~ 25/30fps)
  • Audio ComprerssionG.711a / G.711u(32kbps)/ PCM(128kbps)
  • Audio Streaming1/1 channel In/Out
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ONVIF PSIA CGI
  • Alarm2/1 channel In/Out
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Operating TemperatureDC12V: -30ºC ~ 60ºC / Less than 90% RH, AC24V: -40ºC ~ 70ºC / Less than 90% RH
  • Weatherproof StandardIP66
  • DimensionΦ186mm) x 309 (mm)
  • Weight3.5 kg
  • Power SourceAC24V/ DC12V, POE plus(802.3at)
  • Power ConsumptionDC12V: 13W, 20W (IR on), AC24V: 13W, 23W (IR on)
  • MemoryMicro SD, Max 128GB
  • Optical Zoom20x
