Network, Speed Dome(PTZ)

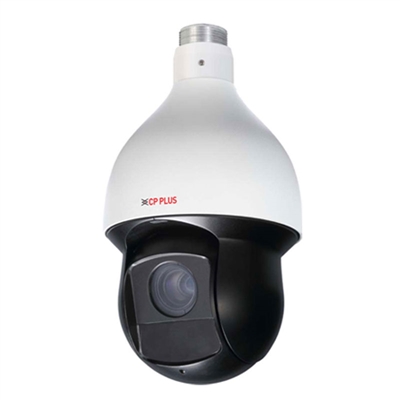

CP-UNP-2020TL10-P 2 MP Full HD IP IR PTZ Camera
- 1/2.8″ CMOS Image sensor
- Powerful 20x Optical and 16x Digital zoom
- Support Triple-streams encoding
- Max. 25/30fps@1080P and 50/60fps@720P Resolution
- DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
- Up to 300 Presets, 8 Tour, 5 Pattern, 8 Auto scan
- Max 400°/s pan speed, 360° endless pan rotation
- IR Range of 100 Mtr.
- Built-in 2/1 alarm in/out, IP66, SD Card, PoE Plus
- Mobile Software: iCMOB, gCMOB, wCMOB
- CMS Software: KVMS Pro, vOptimus Pro
- Image Sensor1/2.8″ CMOS
- Effective Pixels1944(H) x 1092(V), 2Megapixels
- S/N RatioMore than 55dB
- Minimum IlluminationColor: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4
- Focal Length4.7mm ~ 94.0mm
- White BalanceAuto, ATW, Indoor, Outdoor, Manual
- Focus ControlAuto / Manual
- Angle of ViewH: 56.1° ~ 3.1°
- Electronic Shutter1/3 ~ 1/30,000s
- AGC Control1/3 ~ 1/30,000s
- Back Light CompensationBLC / HLC / DWDR
- Optical Zoom20x
- Digital Zoom16x
- Pan Travel0° ~ 360° endless, Pan Speed: 0.1° ~ 300°/sec
- Tilt Travel-15° ~ 90°,, auto flip 180°, Tilt Speed: 0.1° ~200°/sec
- Presets300
- Preset SpeedPan: 400° /s; Tilt: 300° /s
- Power up ActionAuto restore to previous PTZ and lens status after power failure
- Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
- Time TaskAuto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
- Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
- Video CompressionH.264 / MJPEG
- Video StreamingMain Stream: 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps), Sub Stream 1: D1/CIF(1 ~ 25/30fps), Sub Stream 2: 720P/ D1/ CIF (1 ~ 25/30fps)
- Audio ComprerssionG.711a / G.711u(32kbps)/ PCM(128kbps)
- Audio Streaming1/1 channel In/Out
- ProtocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ONVIF PSIA CGI
- AlarmIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ONVIF PSIA CGI
- Smart PhoneiPhone, iPad, Android, Windows Phone
- Operating Temperature-40ºC ~ 70ºC / Less than 90% RH
- Weatherproof StandardIP66
- DimensionΦ186.0(mm) x 309(mm)
- Weight3.5 kg
- Power SourceAC24V, POE plus(802.3at)
- Power Consumption13W, 23W (IR on)
- MemoryMicro SD, Max 128GB
- Optical Zoom20x
