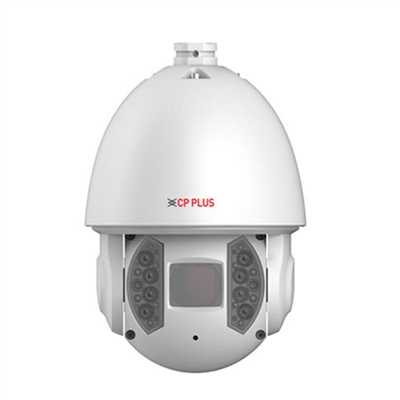

CP-UNP-3020L20DA 2MP 30x WDR IP IR PTZ Dome Camera

CP Plus
Add to wishlist
Compare
  • 1/1.9″ CMOS Image sensor
  • Max 60fps@720P and 30fps@1080P resolution
  • Powerful 30x Optical and 16x Digital zoom
  • Defog, WDR, Day/Night(ICR), Ultra DNR
  • Up to 300 Presets, 8 Tour, 5 Pattern, 5 Auto scan
  • Max 240°/s pan speed, 360° endless pan rotation
  • Auto-tracking and IVS, IR Range of 200 Mtr.
  • Built-in 7/2 alarm in/out, IP67, IK10, Hi-PoE, Micro SD
  • Mobile Software: iCMOB, gCMOB, wCMOB

Compare
  • Image Sensor1/1.9″ CMOS
  • Effective Pixels1944(H) x 1092(V), 2 Megapixels
  • Video OutputBNC(1.0Vp-p/75O), PAL / NTSC
  • S/N RatioMore than 56dB
  • Minimum IlluminationColor: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux (IR on)
  • Focal Length5mm~150mm
  • White BalanceAuto, ATW, Indoor, Outdoor, Manual
  • Focus ControlAuto / Manual
  • Angle of ViewH: 51.2° ~ 1.8°
  • Electronic Shutter1/1 ~ 1/30,000s
  • AGC ControlAuto / Manual
  • Back Light CompensationBLC / HLC / WDR
  • Optical Zoom30x
  • Digital Zoom16x
  • Pan Travel0° ~ 360° endless, Pan Speed: 0.1° ~ 240°/sec
  • Tilt Travel-10° ~ 90°,, auto flip 180°, Tilt Speed: 0.1° ~120°/sec
  • Presets255
  • Preset SpeedPan: 240° /s; Tilt: 200° /s
  • Power up ActionAuto restore to previous PTZ and lens status after power failure
  • Idle MotionActivate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Time TaskAuto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
  • Day/Night: IR Cut FilterAuto(ICR) / Color / B/W
  • Video CompressionH.264 / MJPEG
  • Video StreamingMain Stream: 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps), Sub Stream1: D1/CIF(1 ~ 25/30fps), Sub Stream 2: 720P/D1/ CIF (1 ~ 25/30fps)
  • Audio ComprerssionG.711a / G.711u(32kbps)/ PCM(128kbps)
  • Auto Trackingsingle-scene, multiple-scene, panorama-scene
  • Audio Streaming1/1 channel In/Out
  • IVSTripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc
  • NetworkingRJ-45 (10/100Base-T), 1RS485
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF Profile S
  • Tracking Trigger ModeManual / Auto (alarm triggered)
  • Alarm7/2 channel In/Out
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Operating Temperature-40ºC ~ 70ºC / Less than 90% RH
  • Weatherproof StandardIP67, IK10
  • DimensionΦ252(mm) x 384.3 (mm)
  • Weight6.75 kg
  • Power SourceAC24V/3A(±25%), Hi-POE
  • Power Consumption20W, 43W (IR on, Heater on)
  • MemoryMicro SD, Max 64GB
  • Optical Zoom30x
